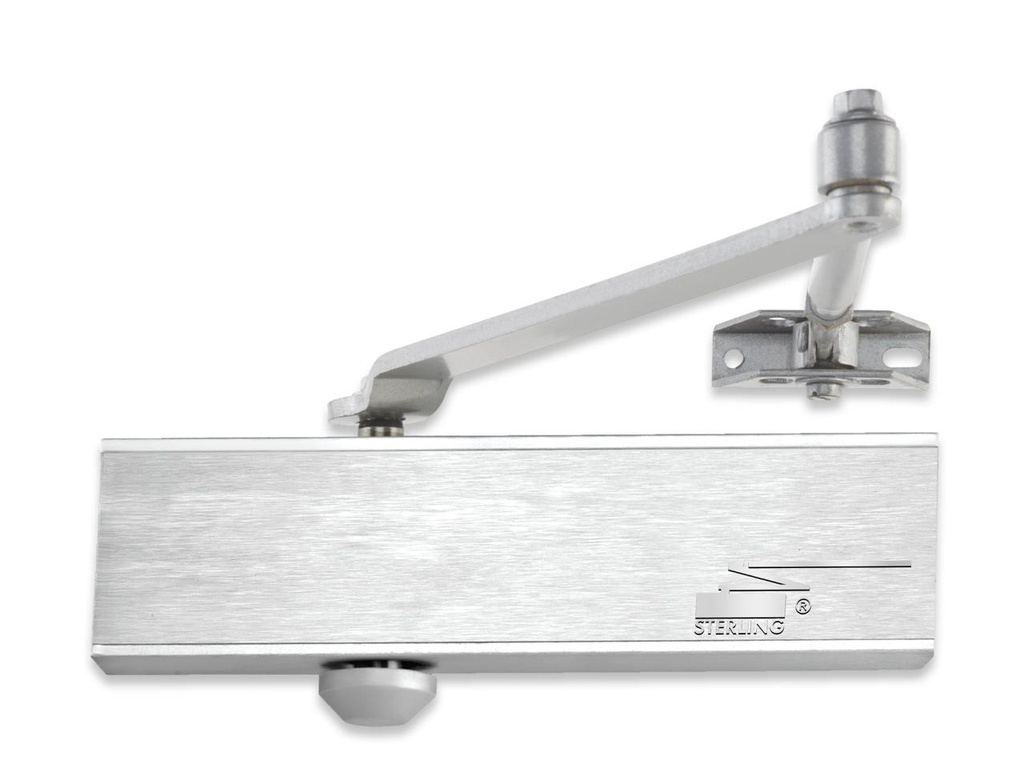

MM-DC-2900-FC-LA-PU-SR
- Extruded Aluminium Alloy Housing Body Precisely Machined & Finished.
- Two Speed Control for Approach & Latching.
- Jerk Free, Smooth Operation Controlled by Rack & Pinion Mechanism.
- Slim Compact Design for Easy Installation.
- Suitable for On Door & On Frame Installation.
- Less Mounting Hole Distance for Limited Space of Aluminium Section.
- Universal Mounting for Left and Right Hand Door.
- Suitable for Wooden & Aluminium Doors.
- Adjustable Lever Arm for Adjustment of Closing Force EN 4-5.
- ISI marked as per IS 3564:1995
- 5 Lakh cycles tested
| DOOR WEIGHT | Up to 100 Kgs |
| DOOR WIDTH | Up to 1100mm |
| FINISH | PU Painted |
| DIMENSIONS (mm) | L225 x W40 x H55 |
