Sterling floor springs
Floor springs for glass and wooden doors
BIS certified floor springs for doors from 60 kg to 120 kg, with hold open at 90° and two-speed control. Made in India by MM Efficient Gadget LLP.
- 2 models
- 60–120 kg doors
- BIS · CM/L 7700249814
- Hold open at 90°
Sterling floor spring models

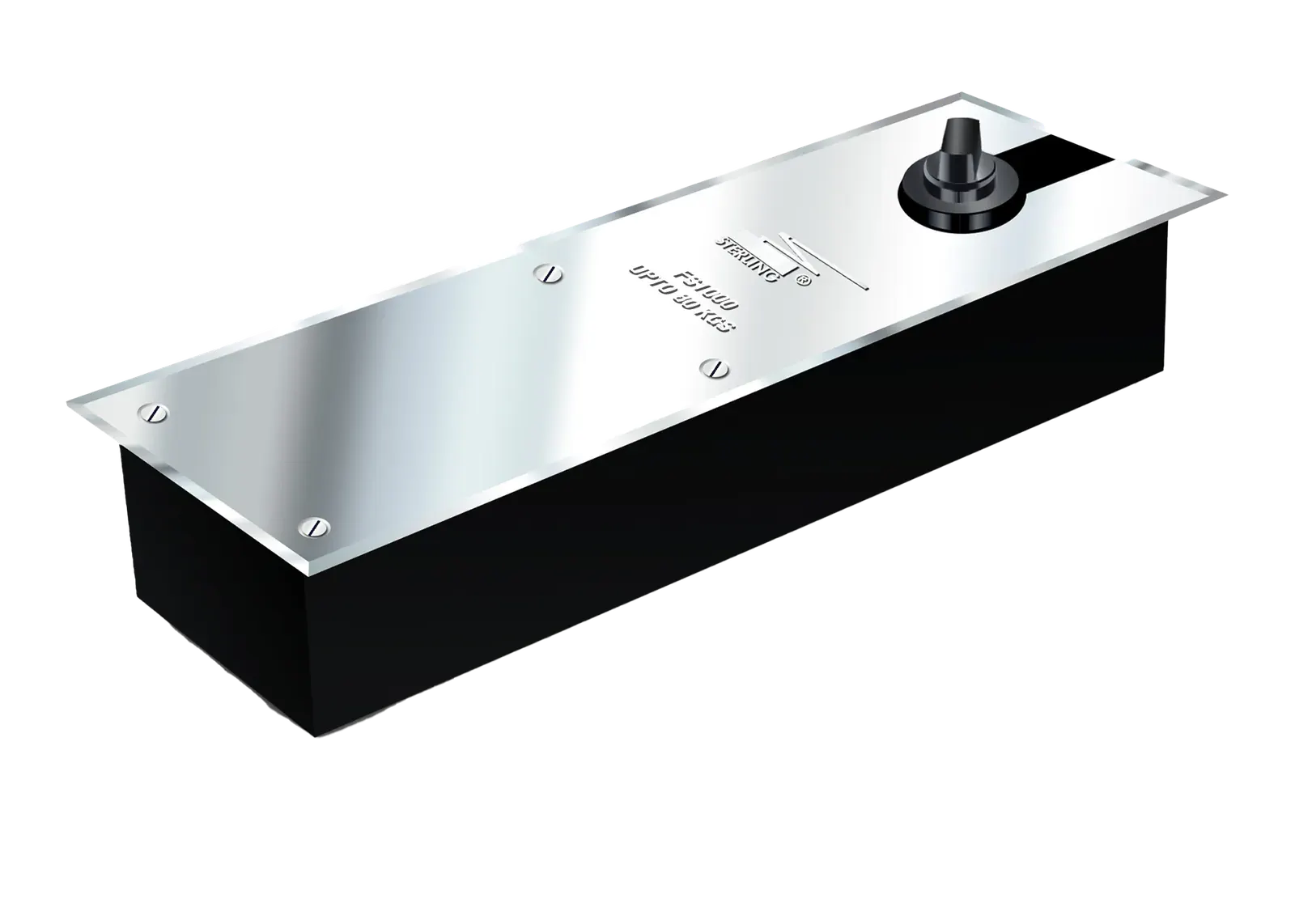

Sterling FS 1000
- Door weight
- 60–80 kg
- Max width
- 1100 mm
- Type
- Floor spring
- Size (mm)
- L254 × W105 × H54
Sterling FS 3000
- Door weight
- 90–120 kg
- Max width
- 1100 mm
- Type
- Floor spring
- Size (mm)
- L275 × W82 × H54
What every Sterling floor spring has
Two-speed control
Separate adjustment for the closing and the latching speed.
Hold open at 90°
Built-in hold open at 90°, for doors that need to stay open.
Adjustable in the box
Left–right, front–back and top–bottom adjustment inside the box.
Glass and wooden doors
Suitable for glass doors, and for wooden doors with top and bottom pivot accessories.
Floor spring questions
Ask on WhatsAppWhat is a floor spring?
A floor spring is a door closer set into a recess in the floor under the door, with the door pivoting on it. Nothing is fitted on the door face, which is why floor springs are used on frameless glass doors and heavy entrance doors.
Which Sterling floor spring do I need?
Choose by door weight. The FS 1000 is load-adjustable for doors of 60–80 kg. The FS 3000 covers doors of 90–120 kg and uses cam action to adjust the spring load to the door weight. Both suit doors up to 1100 mm wide.
Are Sterling floor springs BIS certified?
Yes. Sterling floor springs are BIS certified under licence CM/L No. 7700249814. Sterling was the first company in India to hold BIS certification for floor springs.
Can a floor spring be used on a wooden door?
Yes. Both models are suitable for glass and wooden doors, and are available with top and bottom pivot accessories for wooden doors.
Floor spring or overhead door closer?
Floor springs suit glass and heavy doors where nothing should be visible on the door. Overhead door closers suit most wooden and aluminium doors and are simpler to retrofit. Our guide compares the two in detail.
Floor spring guides
- Floor spring or door closer? How to choose between themBoth control how a door closes, but they solve different problems. The deciding factors are usually the door material, the weight and whether anything can be seen.
- ISI marking and IS 3564 explained for door closersISI, BIS, IS 3564, ISO 9001 and cycle testing get used almost interchangeably in product listings. They certify quite different things.
- How long does a door closer last?The honest answer is that it depends entirely on how often the door moves, which is why closers are rated in cycles rather than years.
- What affects door closer price in India?Door closers span a wide price range, and most of the difference is explainable. Here is what actually sits behind the number on a quote.
- Hardware for frameless glass doorsA glass shopfront door has no frame and no leaf to fix into, which rules out most door hardware before you start. This is what is left.
- Specifying door closers for high-traffic entrancesOn a busy entrance, durability and opening force stop being footnotes and become the specification.
Floor springs for a project?
Send your door schedule with weights, widths and quantities, and we will size and quote every door.
