Sterling concealed
door closers.

The DC 2700 and DC 2800, fitted into the door and frame so the body is hidden when the door is closed. For wooden doors from 32 mm and 38 mm thick, up to 80 kg and 970 mm wide, with two-speed control for either side of the door.

Find the right closerRequest a project quote
Sterling DC 2700 concealed door closer in silver finish
Shown: DC 2700 in silver.

Two models,
by door thickness.

Rack and pinion, extruded aluminium alloy housings, silver, black, brown, gold, rose gold finish. The closing force is set by preloading the arm: EN 2-3 on the DC 2700 and EN 2-4 on the DC 2800.

Scroll the table sideways for door thickness and body sizes.

Concealed models: door limits, door thickness and body
ModelEN 1154Door, kgWidth, mmDoor from, mmBody L × W × H, mmFinishMarks
DC 2700EN 2-36097032210 × 28 × 50Silver, black, brown, gold, rose goldISI
DC 2800EN 2-48097038225 × 32 × 50Silver, black, brown, gold, rose goldISI

ISI marked to IS 3564:1995 under BIS licence CM/L 7700126309: DC 2700 and DC 2800.

Bodies, drawn from the specification

Front, end and plan of each body in millimetres, each scaled to its own width, with a studio photograph of a concealed body beside them.

DC 2700 body drawn to scale in millimetres: front view 210 by 50, end view 28 by 50, plan 210 by 28210502828FrontEndPlanmm
Body of the DC 2700 in millimetres: length 210, width 28, height 50, drawn from the specification. The arm is not drawn: no dimension is published for it.
DC 2800 body drawn to scale in millimetres: front view 225 by 50, end view 32 by 50, plan 225 by 32225503232FrontEndPlanmm
Body of the DC 2800 in millimetres: length 225, width 32, height 50, drawn from the specification. The arm is not drawn: no dimension is published for it.

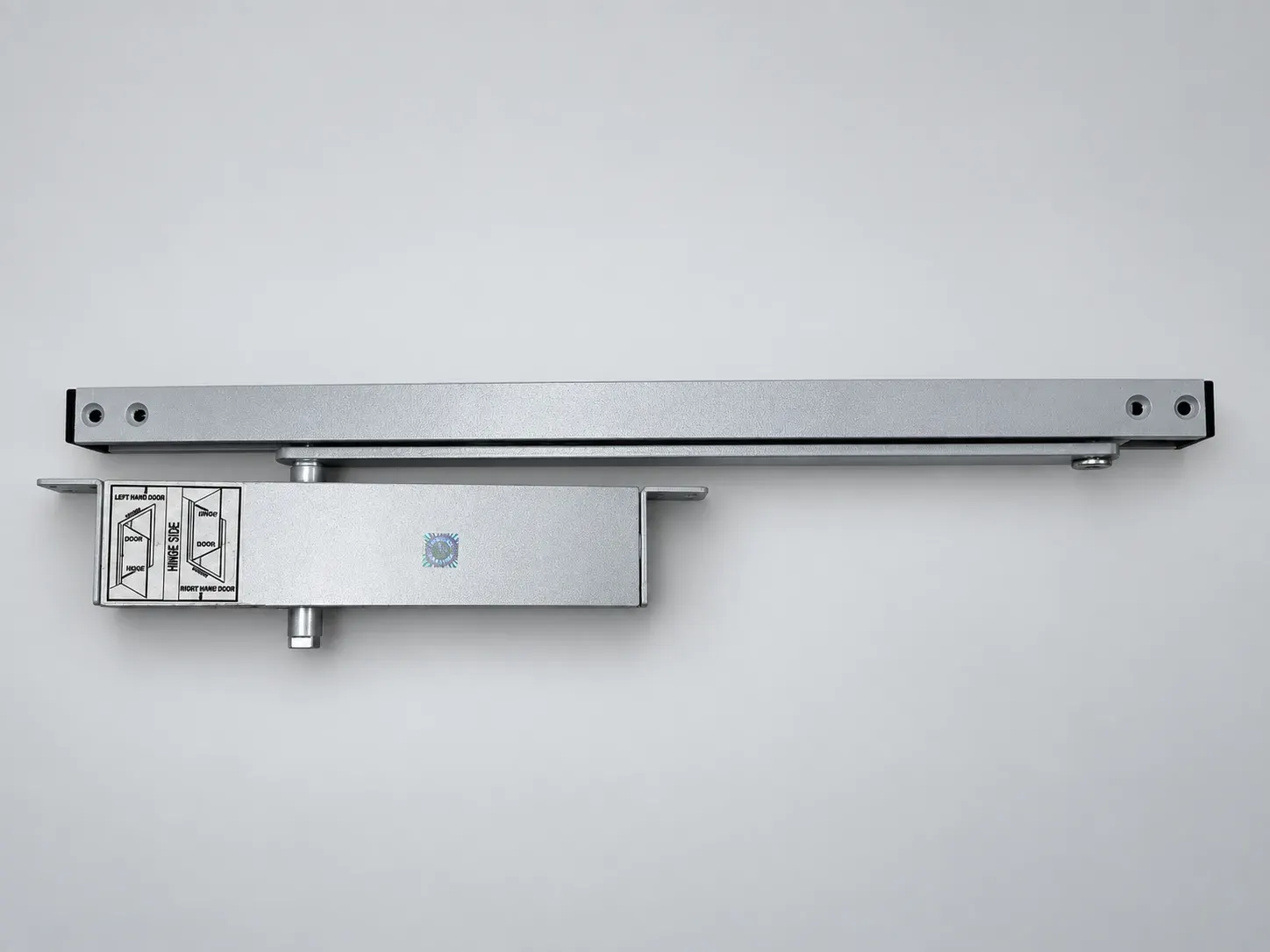

Sterling concealed door closer body with its slide track and the hinge side handing label, silver, front view, studio photograph
A Sterling concealed closer body with its slide track and handing label. Studio photograph; the model is not named.

32 mm or 38 mm,
wooden doors.

The thickness of the wooden leaf decides the model: the DC 2700 from 32 mm and the DC 2800 from 38 mm. The body sits inside the top of the leaf, so plan the door preparation before the door is made.

Door envelope for the DC 2700: a leaf up to 970 mm wide and up to 60 kg, EN 2-3, with the closer body drawn dashed inside the top of the leafinside the leafup to 970up to 60 kgEN 2-3hinge sidemm
DC 2700: a wooden leaf up to 970 mm wide and up to 60 kg, at least 32 mm thick, with the body drawn dashed inside the top of the leaf at the same scale. Leaf height is not dimensioned.
Door envelope for the DC 2800: a leaf up to 970 mm wide and up to 80 kg, EN 2-4, with the closer body drawn dashed inside the top of the leafinside the leafup to 970up to 80 kgEN 2-4hinge sidemm
DC 2800: a wooden leaf up to 970 mm wide and up to 80 kg, at least 38 mm thick, with the body drawn dashed inside the top of the leaf at the same scale. Leaf height is not dimensioned.

Size the door
to EN 1154 first.

Enter the door’s weight and width. The calculator opens with concealed mounting chosen, reads the EN 1154 size and lists the concealed models rated for that door.

kg
mm
EN 1154 size table: the largest door each size covers
SizeDoor, kgWidth, mm
EN 120750
EN 240850
EN 360950
EN 4801100
EN 51001250
EN 61201400
EN 71601600

Questions about
concealed closers.

Something else? Ask the Sterling sales desk on WhatsApp +91 83693 92225.

What door does a Sterling concealed closer need?

A wooden door. The DC 2700 needs a leaf at least 32 mm thick. The DC 2800 needs a leaf at least 38 mm thick. Both are rated for doors up to 970 mm wide.

What door weights do the DC 2700 and DC 2800 cover?

The DC 2700 is rated for doors up to 60 kg (EN 2-3). The DC 2800 is rated for doors up to 80 kg (EN 2-4).

How are the closing force and speed set?

Both have two-speed control, closing and latching, for either side of the door, and suit left and right hand opening. The closing force is set by preloading the arm: EN 2-3 on the DC 2700 and EN 2-4 on the DC 2800.

Can a concealed closer hold the door open?

Yes, as a variant: the DC-2720 HPA and DC-2820 HPA hold the door open from 10 to 90 degrees.

Are the concealed closers ISI or CE marked?

Both are ISI marked to IS 3564:1995 under BIS licence CM/L 7700126309. CE marking is not stated for the DC 2700 and DC 2800. The DC 2700 is tested to 3,00,000 cycles and the DC 2800 to 4,00,000 in a government-approved lab.

Do you quote for projects and bulk orders?

Yes. Sterling does not publish list prices, because the price depends on the model, finish and quantity. Send a door schedule with leaf widths, door weights, mounting type and quantities, and we will size and quote every door against it.

Send a door
schedule.

Door references, quantities, door weights and widths, hold-open needs and finishes. Sterling quotes per project; there are no list prices online.
