Compare all twelve
Sterling models.

Every Sterling door closer and floor spring in one table: door limits, EN 1154 size, body, finishes and marks.

Find the
right closer.

EN 1154 sizes a closer by door weight and by door width. Each gives a size; the larger one governs. A model is listed when its rated door weight and width both cover your door.

Open the size calculator, with the EN 1154 table

kg
mm
Mounting

For a door of 75 kg and 1050 mm

EN 4

  1. 75 kg is over 60 and up to 80 kg: EN 4 by weight.
  2. 1050 mm is over 950 and up to 1100 mm: EN 4 by width.
  3. Both give EN 4, so EN 4 governs. Where they differ, the larger size governs.

Six models rated for this door

  • DC 2000

    Surface mounted, EN 3-4, rated 80 kg and 1100 mm. Front control adjustment.

    Margin: 5 kg, 50 mm

  • DC 2600

    Surface mounted, EN 3-4, rated 80 kg and 1100 mm. Front control adjustment. Holds open from 10 to 90 degrees.

    Margin: 5 kg, 50 mm

  • FS 1000

    Floor spring, rated 60 to 80 kg and 1100 mm. Hold open at 90 degrees.

    Margin: 5 kg, 50 mm

  • DC 2900

    Surface mounted, EN 4-5, rated 100 kg and 1100 mm. Front control adjustment.

    Margin: 25 kg, 50 mm

  • FS 3120

    Floor spring, rated 120 kg and 1100 mm. Hold open at 90 degrees.

    Margin: 45 kg, 50 mm

  • FS 3150

    Floor spring, rated 150 kg and 1300 mm. Hold open at 90 degrees.

    Margin: 75 kg, 250 mm

Not listed, and why

  • Rated below this door's weight: DC 1500 (45 kg), DC 1800 LA, DC 1820 and DC 2700 (60 kg).
  • Rated below this door's width: DC 2800 (970 mm).
  • Below the floor spring's rated range: FS 3000 (90 to 120 kg).

Listed with headroom first, nearest limit first; models rated exactly at your door follow. Floor springs carry no stated EN 1154 size and are matched on their rated door weight and width.

Compare every model

Mounting, EN 1154 size, door limits, hold-open, front control adjustment, the cycle test figure and the marks of all twelve models in one table.

Narrow it by mounting or feature, or tick up to three models to read them side by side.

Mounting
Must have

Showing 12 of 12 models, the whole range.

Scroll the table sideways for body sizes, finishes, marks and features.

All twelve models, door limits, body and marks
ModelCompareMountingEN 1154Door, kgWidth, mmBody L × W × H, mmFinishesMarksHold-openFront adjustmentCycle test, cycles
DC 1500SurfaceEN 1-245900190 × 39 × 40SilverBlackBrownGoldRose goldISIDC-1520 HPA variantNot statedNot stated
DC 1800 LASurfaceEN 2-360950162 × 40 × 45SilverBlackBrownGoldRose goldISI, CENot statedOptional4,00,000
DC 1820SurfaceEN 2-360950162 × 40 × 45SilverBlackBrownGoldRose goldISI, CEHold-open pelmet armYes4,00,000
DC 2000SurfaceEN 3-4801100202 × 40 × 55SilverBlackBrownGoldRose goldISI, CENot statedYes5,00,000
DC 2600SurfaceEN 3-4801100202 × 40 × 55SilverBlackBrownGoldRose goldISI, CE10 to 90 degreesYes5,00,000
DC 2700ConcealedEN 2-360970210 × 28 × 50SilverBlackBrownGoldRose goldISIDC-2720 HPA variantNot stated3,00,000
DC 2800ConcealedEN 2-480970225 × 32 × 50SilverBlackBrownGoldRose goldISIDC-2820 HPA variantNot stated4,00,000
DC 2900SurfaceEN 4-51001100225 × 40 × 55SilverBlackBrownGoldRose goldISI, CEDC-2920 HPA HD variantYes5,00,000
FS 1000Floor springNot stated60 to 801100254 × 105 × 54Stainless steel matt top plateBISAt 90 degreesNot stated5,00,000

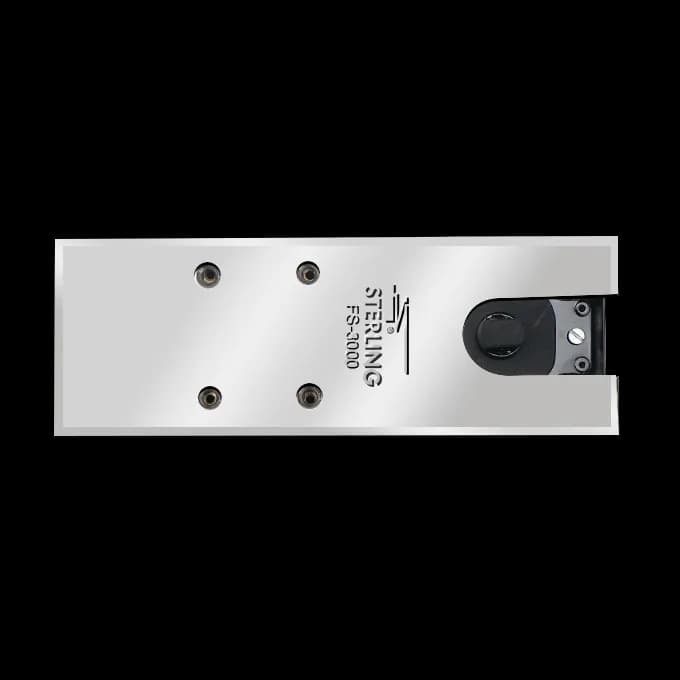

FS 3000Floor springNot stated90 to 1201100275 × 82 × 54Stainless steel matt top plateBISAt 90 degreesNot stated5,00,000
FS 3120Floor springNot statedup to 1201100Not statedNot statedBISAt 90 degreesNot stated5,00,000
FS 3150Floor springNot statedup to 1501300Not statedNot statedBISAt 90 degreesNot stated5,00,000

All twelve models: mounting, door limits, hold-open, adjustment, cycle test and marks

ISI marked to IS 3564:2025 under BIS licence CM/L 7700126309: DC 1500, DC 1800 LA, DC 1820, DC 2000, DC 2600, DC 2700, DC 2800 and DC 2900. CE marked: DC 1800 LA, DC 1820, DC 2000, DC 2600 and DC 2900. BIS certified to IS 6315:2025 under licence CM/L 7700249814: FS 1000, FS 3000, FS 3120 and FS 3150. No EN 1154 size is stated for floor springs; they are rated by door weight and width. “Not stated” means no Sterling source gives that figure or mark for the model, so none is claimed. Hold-open lists the printed range, or the variant that offers it. The cycle figure is the one Sterling's printed brochure gives for each model; “Not stated” means no source gives one.

Certificates and licence details

Front of S.K. Industrial Park in Vasai (East), the building that houses the MM Efficient Gadget LLP works

Send a door
schedule.

Door references, quantities, door weights and widths, hold-open needs and finishes. Sterling quotes per project; there are no list prices online.
