Sterling door closers,
EN 1-2 to EN 4-5.
Eight rack and pinion door closers for doors up to 100 kg and 1100 mm wide: six surface-mounted, two concealed. Two-speed control, closing and latching; extruded aluminium alloy housings, precision machined.
Six closers,
surface-mounted.
For doors up to 100 kg and 1100 mm wide, EN 1-2 to EN 4-5, fitted on the face of the door or the frame, with universal left and right hand mounting. Front control adjustment on the DC 1820, DC 2000, DC 2600 and DC 2900. Hold-open pelmet arm on the DC 1820 and DC 2600, and as a variant of the DC 1500 (DC-1520 HPA) and DC 2900 (DC-2920 HPA HD). The DC 2600 holds from 10 to 90 degrees.
Scroll the table sideways for body sizes, finishes and marks.
| Model | EN 1154 | Door, kg | Width, mm | Body L × W × H, mm | Finishes | Marks |
|---|---|---|---|---|---|---|
| DC 1500 | EN 1-2 | 45 | 900 | 190 × 39 × 40 | Silver, black, brown, gold, rose gold | ISI |

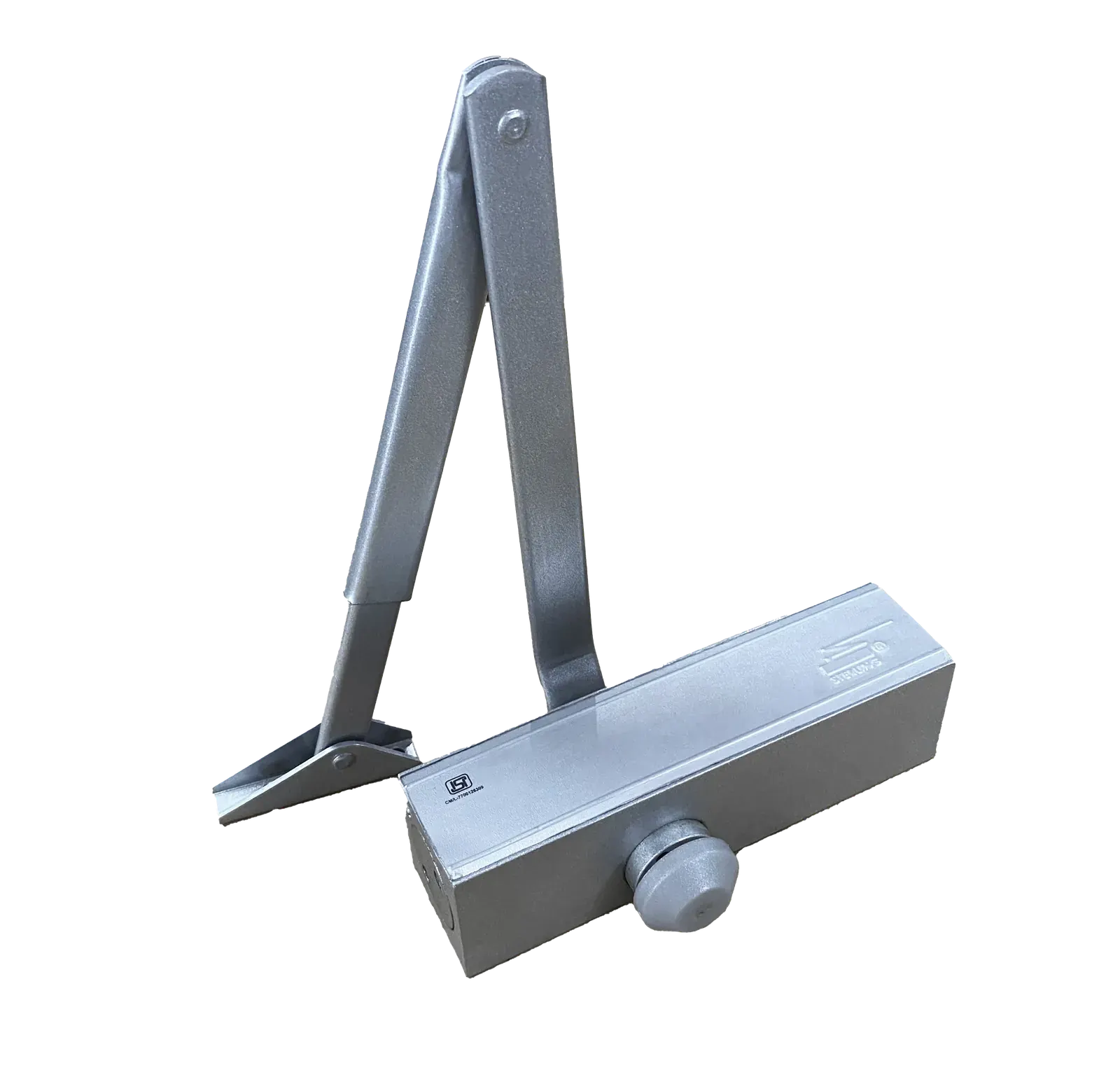

| DC 1800 LA | EN 2-3 | 60 | 950 | 162 × 40 × 45 | Silver, black, brown, gold, rose gold | ISI, CE |

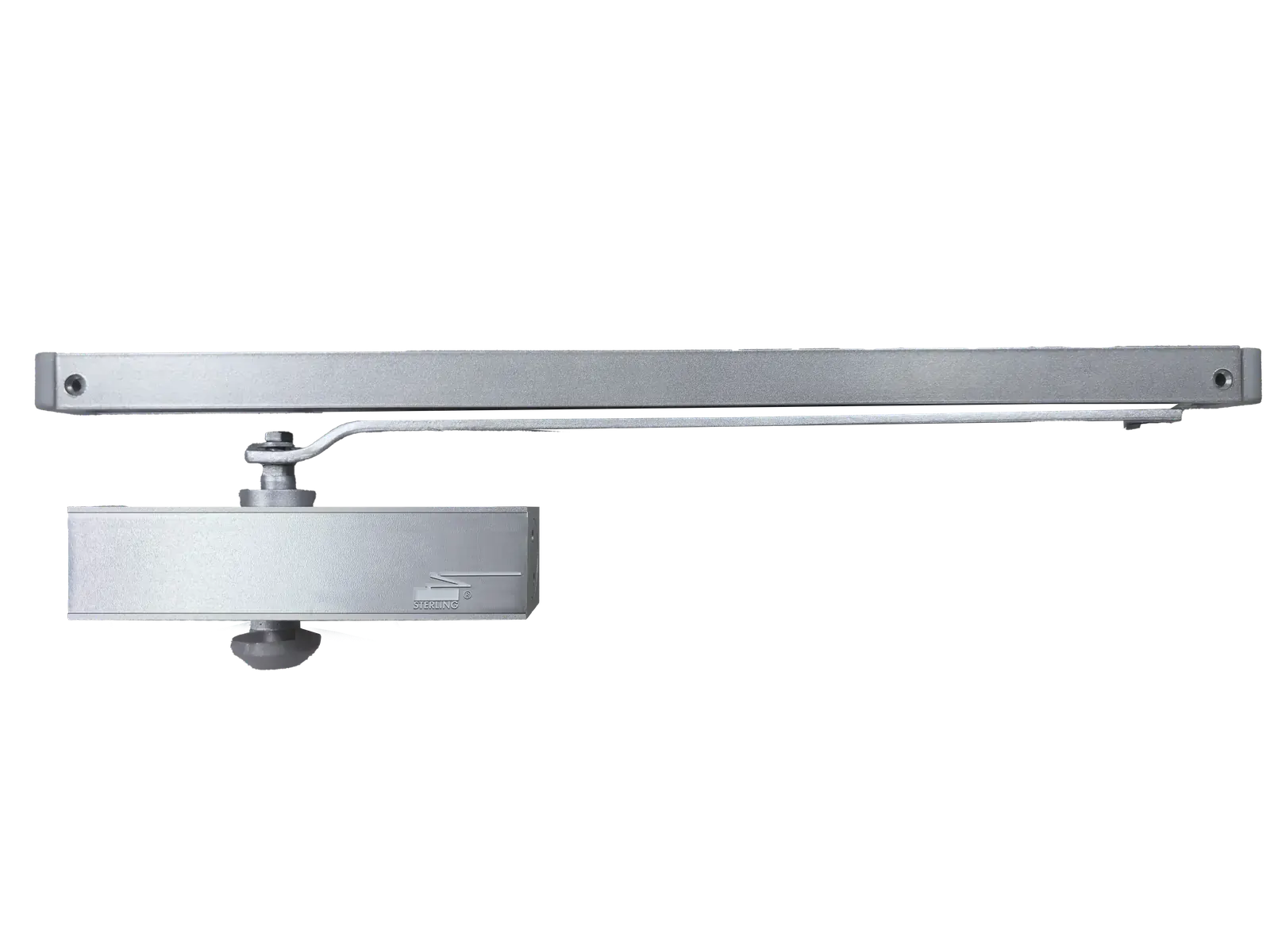

| DC 1820 | EN 2-3 | 60 | 950 | 162 × 40 × 45 | Silver, black, brown, gold, rose gold | ISI, CE |

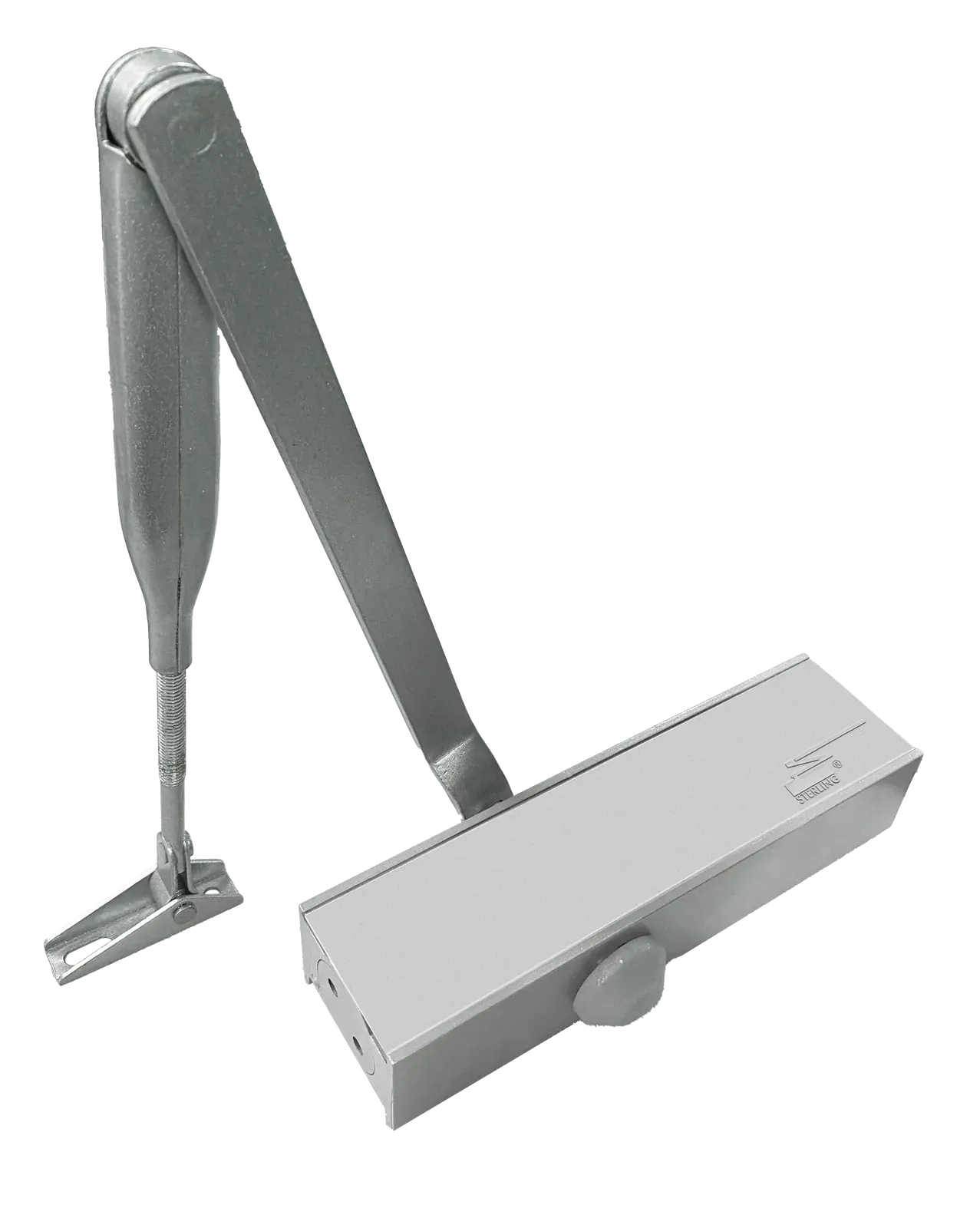

| DC 2000 | EN 3-4 | 80 | 1100 | 202 × 40 × 55 | Silver, black, brown, gold, rose gold | ISI, CE |

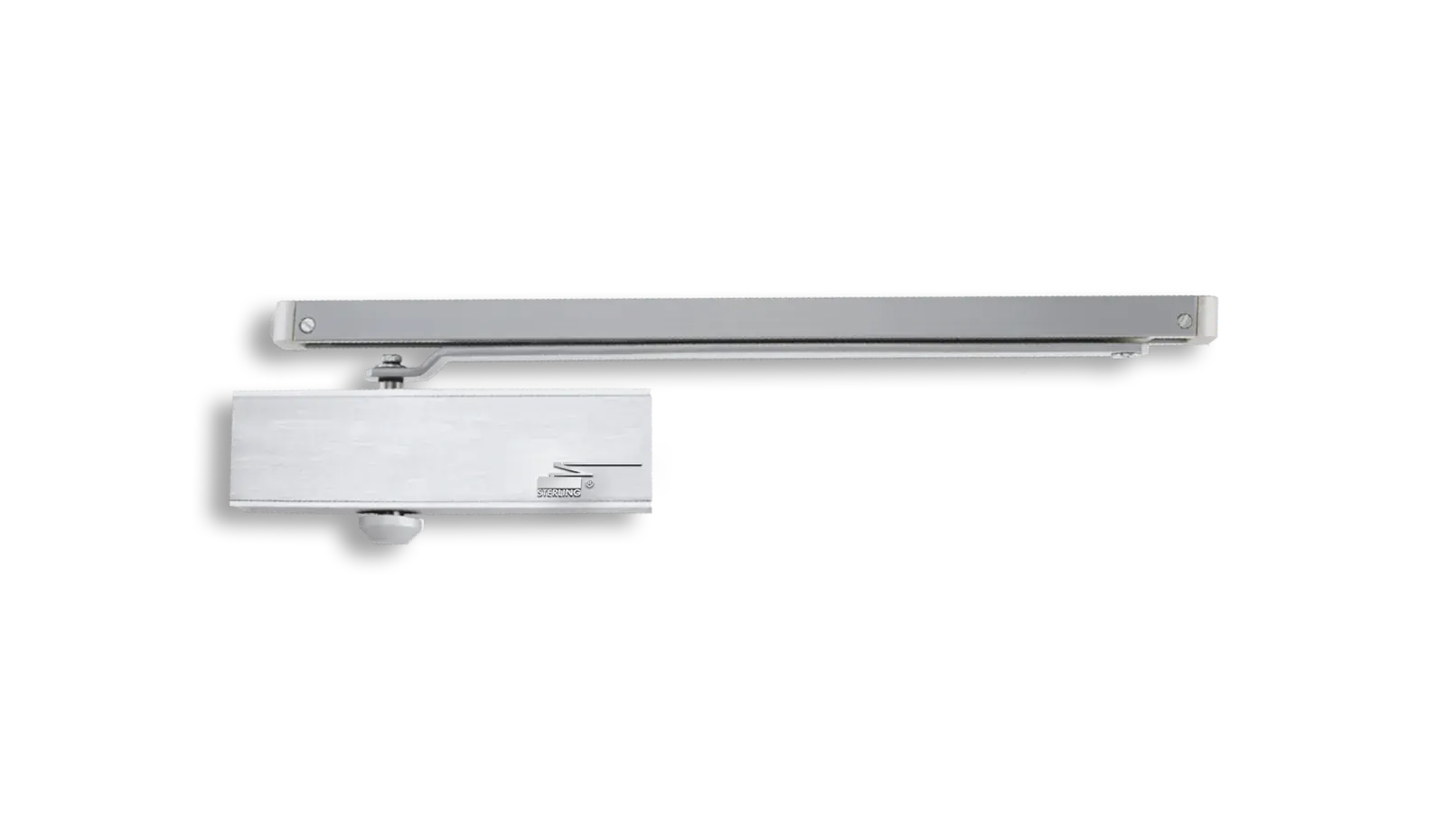

| DC 2600 | EN 3-4 | 80 | 1100 | 202 × 40 × 55 | Silver, black, brown, gold, rose gold | ISI, CE |

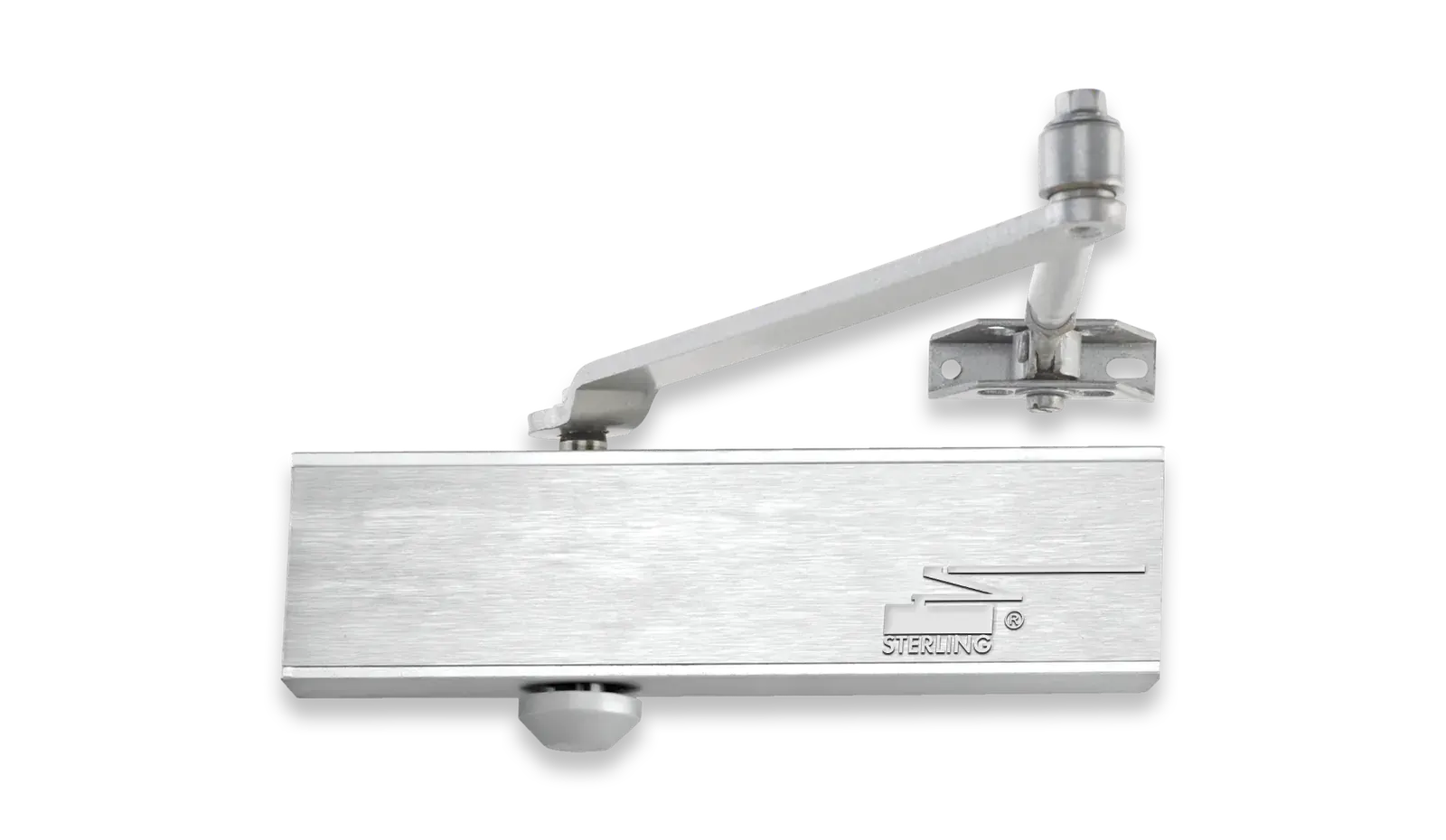

| DC 2900 | EN 4-5 | 100 | 1100 | 225 × 40 × 55 | Silver, black, brown, gold, rose gold | ISI, CE |
ISI marked to IS 3564:1995 under BIS licence CM/L 7700126309: DC 1500, DC 1800 LA, DC 1820, DC 2000, DC 2600 and DC 2900. CE marked: DC 1800 LA, DC 1820, DC 2000, DC 2600 and DC 2900.
Bodies, drawn from the specification
Front, end and plan of each body in millimetres.
Each drawing is scaled to its own width; no arm or bracket is drawn, because no dimension is published for them.
Concealed closers,
for wooden doors.

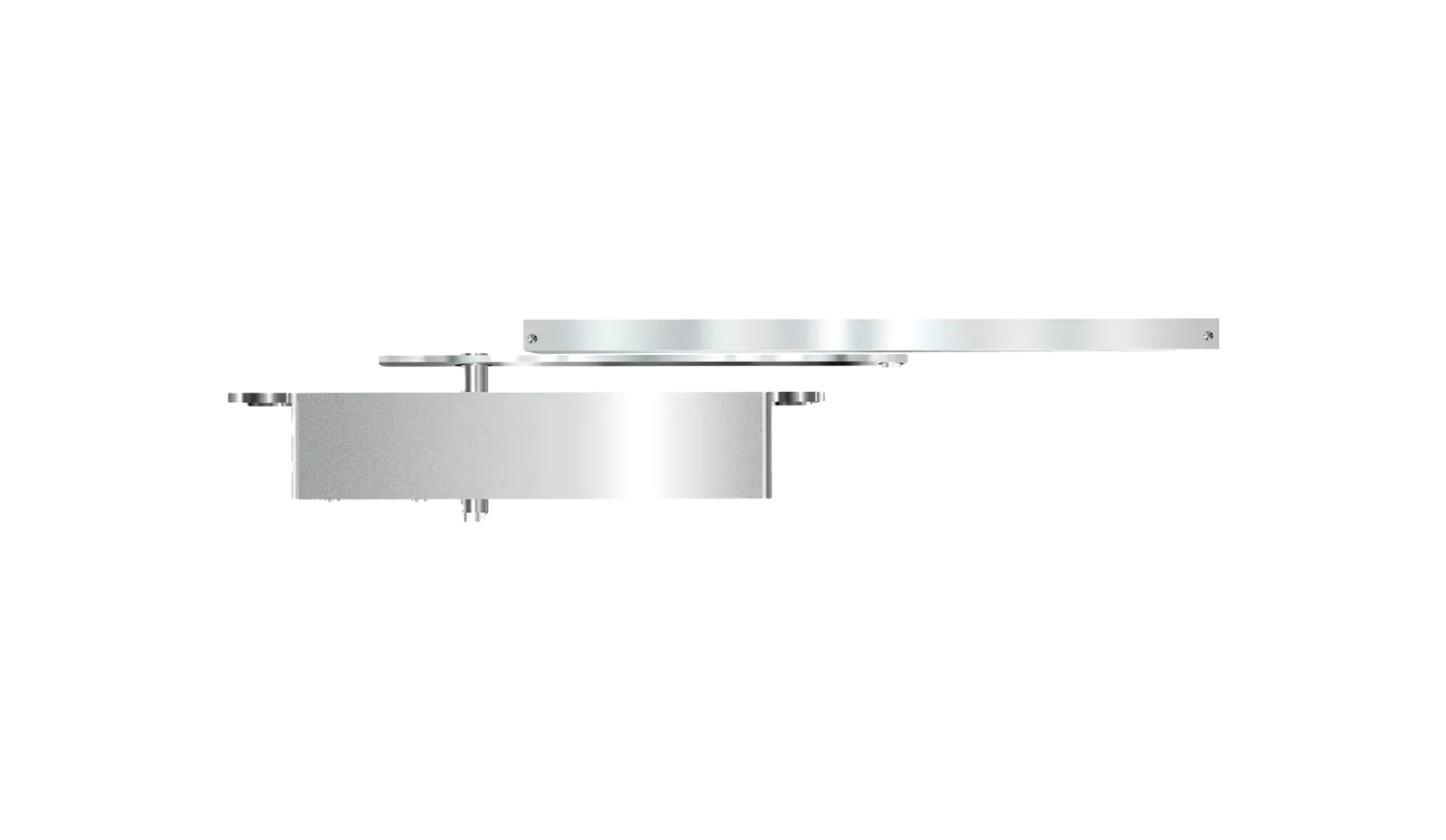

Two models, set into the door and frame, so the body is hidden when the door is closed. The DC 2700 needs a wooden leaf from 32 mm thick, the DC 2800 from 38 mm.
Closing speed,
latching speed.
Every Sterling door closer is rack and pinion with two-speed control, set by two valves. Closing speed controls the swing from open to about 10 to 15 cm before the frame; latching speed controls the final click as it shuts.
On the DC 1820, DC 2000, DC 2600 and DC 2900 both speeds are set from the front of the closer: front control adjustment.
Size the door
to EN 1154 first.
Enter the door’s weight and width. The calculator reads the EN 1154 size from both, takes the larger, and lists the Sterling models rated for that door with the reasons for the rest.
| Size | Door, kg | Width, mm |
|---|---|---|
| EN 1 | 20 | 750 |
| EN 2 | 40 | 850 |
| EN 3 | 60 | 950 |
| EN 4 | 80 | 1100 |
| EN 5 | 100 | 1250 |
| EN 6 | 120 | 1400 |
| EN 7 | 160 | 1600 |
Guides for
choosing a closer.
Short pages written from the standard and the specification: the size, the mounting and the model.
Covers EN 1 to EN 7
What size door closer do I need? EN sizes explained
Every door closer is sized against two numbers: how wide the door leaf is and how much it weighs. The EN power size scale puts both on one axis.
Covers 32 and 38 mm
Surface-mounted vs concealed door closers
The mechanism is much the same. What changes is where it lives, and that affects installation, servicing and what the finished door looks like.
Covers up to 120 kg
Sterling door closers and floor springs, model by model
The published weight, width, EN size, hold-open and marking for each of the ten Sterling door closers and floor springs, with the DC 2000 and DC 2600 compared.
Questions about
door closers.
Something else? Ask the Sterling sales desk on WhatsApp +91 83693 92225.
What types of door closer does Sterling make?
Two types, both rack and pinion with two-speed control. Surface-mounted closers (DC 1500, DC 1800 LA, DC 1820, DC 2000, DC 2600 and DC 2900) fit on the face of the door or the frame. Concealed closers (DC 2700 and DC 2800) are fitted into the door and frame, so the body is hidden when the door is closed.
What door weights do Sterling door closers cover?
From doors up to 45 kg (DC 1500, EN 1-2) to doors up to 100 kg (DC 2900, EN 4-5). The concealed models cover doors up to 80 kg.
How do I choose the right door closer size?
Use the EN 1154 size that covers both the door's weight and its leaf width; the larger of the two governs. A door 1050 mm wide needs at least EN 4 even if it is light. The size calculator does this for any door and lists the Sterling models rated for it.
Are Sterling door closers ISI marked?
Yes, all eight. The DC 1500, DC 1800 LA, DC 1820, DC 2000, DC 2600, DC 2700, DC 2800 and DC 2900 are ISI marked to IS 3564:1995 under BIS licence CM/L 7700126309.
Which Sterling door closers are CE marked?
The DC 1800 LA, DC 1820, DC 2000, DC 2600 and DC 2900 are CE marked. CE marking is not stated for the DC 1500, DC 2700 and DC 2800.
Surface-mounted or concealed: which should I choose?
Surface-mounted closers suit wooden and aluminium doors and are fitted on the face of the door or the frame. Concealed closers suit wooden doors only, from 32 mm thick for the DC 2700 and from 38 mm thick for the DC 2800, and the door and frame must be prepared to take the body.
Do you quote for projects and bulk orders?
Yes. Sterling does not publish list prices, because the price depends on the model, finish and quantity. Send a door schedule with leaf widths, door weights, mounting type and quantities, and we will size and quote every door against it.
