The Sterling
brochure.
Every door closer and floor spring in the range, as printed. Read it here spread by spread, or download the PDF.
The brochure,
spread by spread.
What each spread holds, with a link to every model's page. The ratings given here are the ones this site publishes; where the print states a wider range, the narrower figure is used.

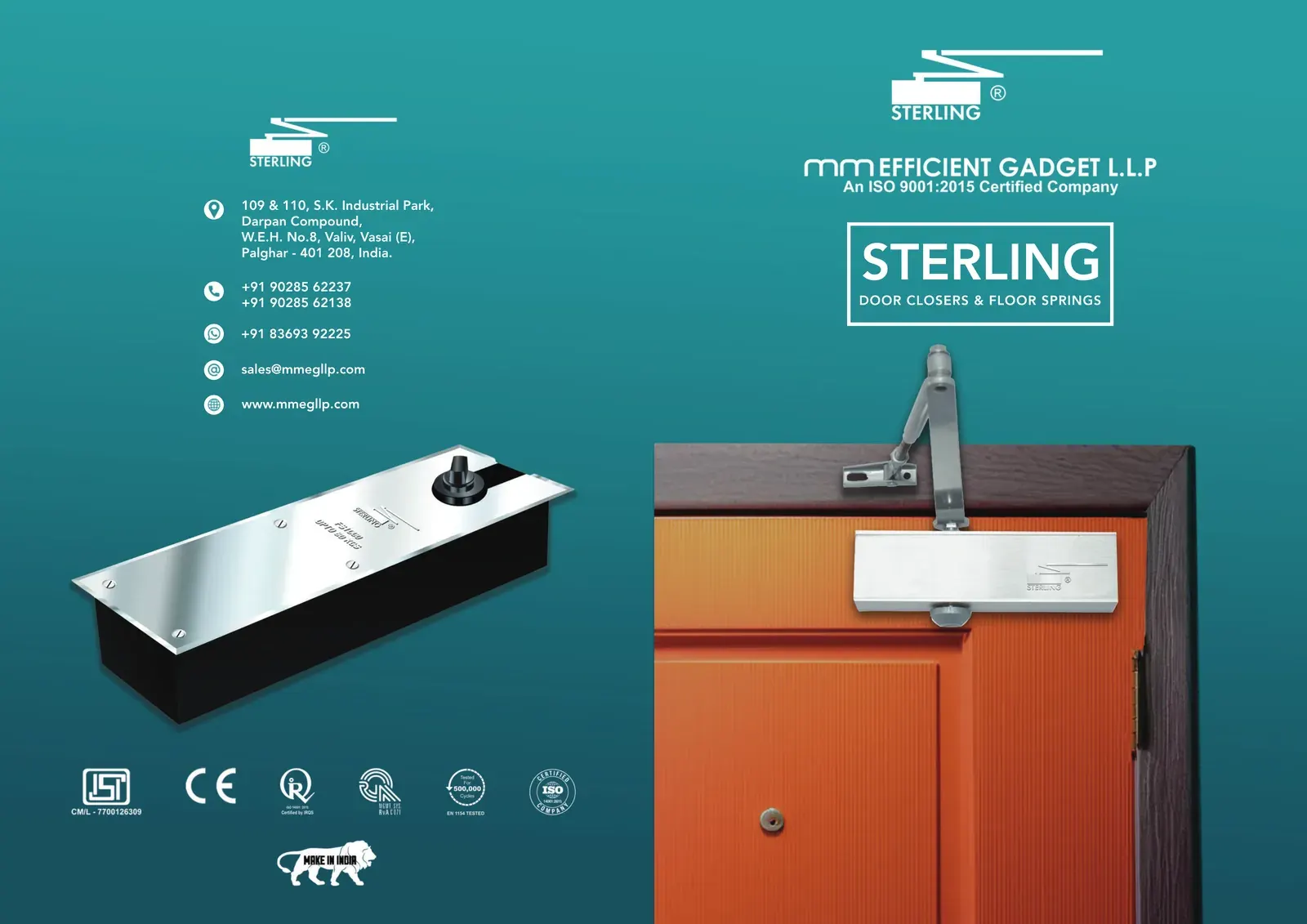

Covers
PDF page 1
The front cover names the range, door closers and floor springs, and the maker, MM Efficient Gadget LLP. The back cover carries the contact details.

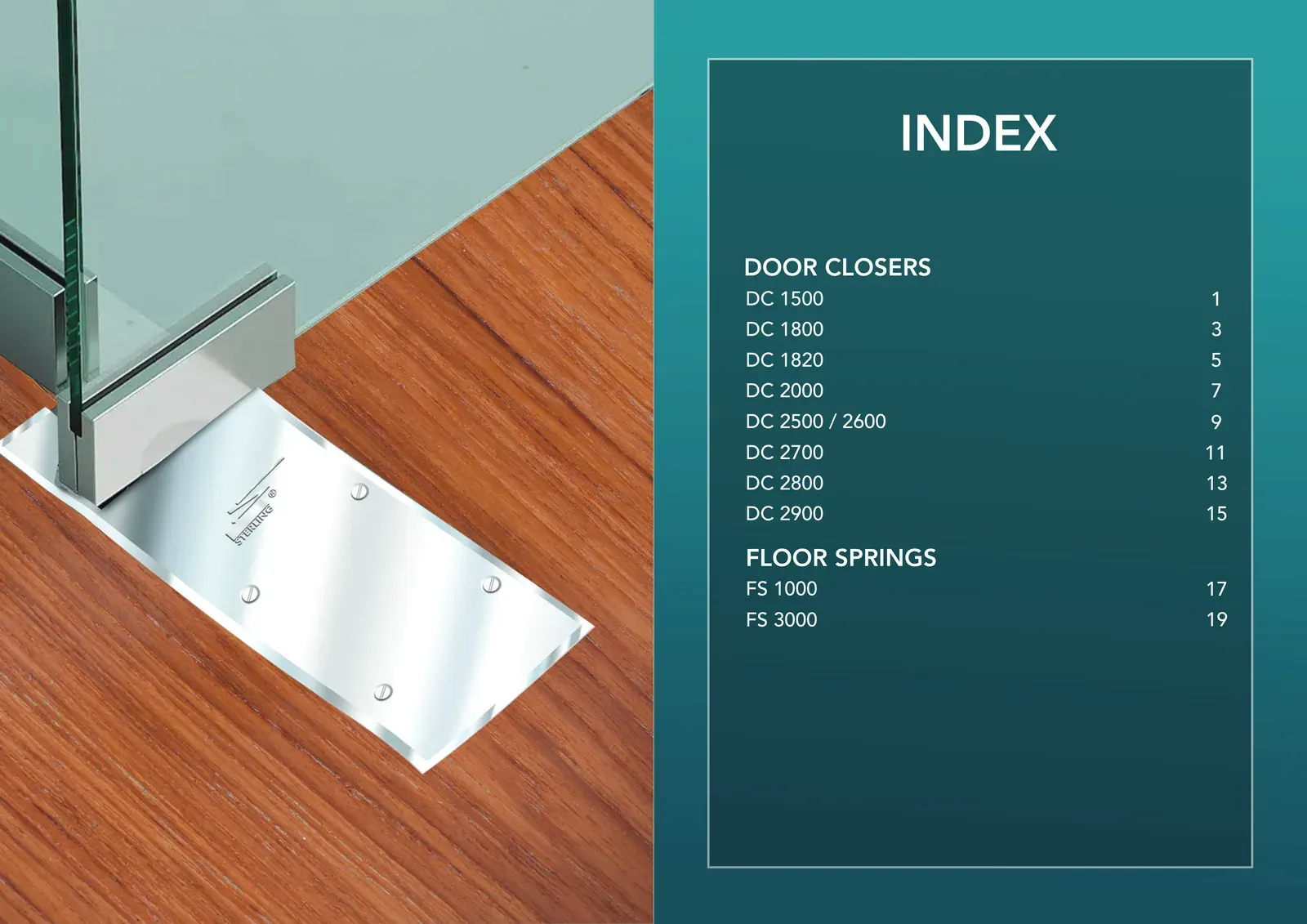

Index
PDF page 2
The index: eight door closers and two floor springs, each on its own spread below.

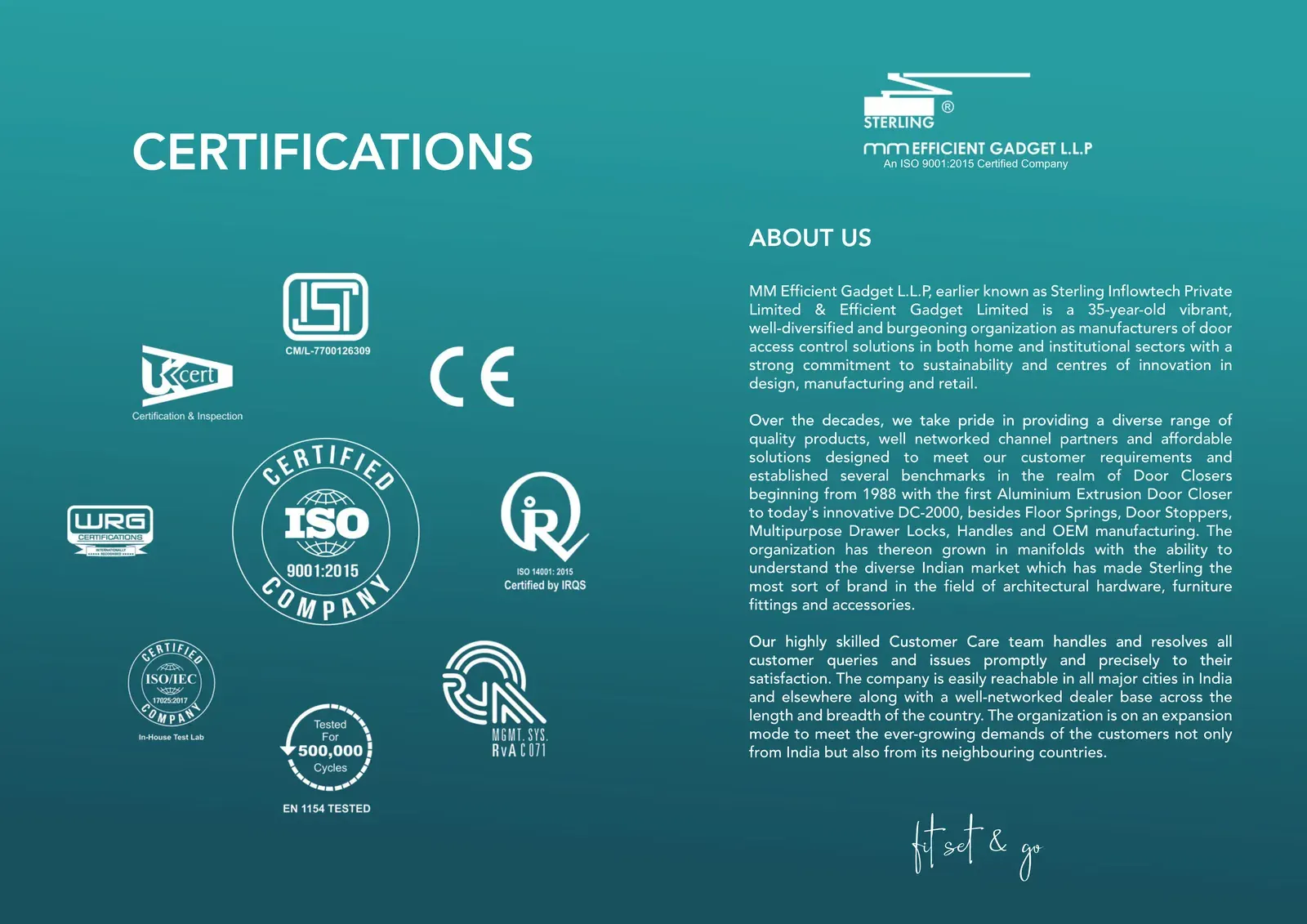

Certifications and company profile
PDF page 3
Certification marks and the company profile of MM Efficient Gadget LLP, earlier known as Sterling Inflowtech Private Limited and Efficient Gadget Limited. The certificates this site states, with licence numbers and the models each covers, are on the certificates page.

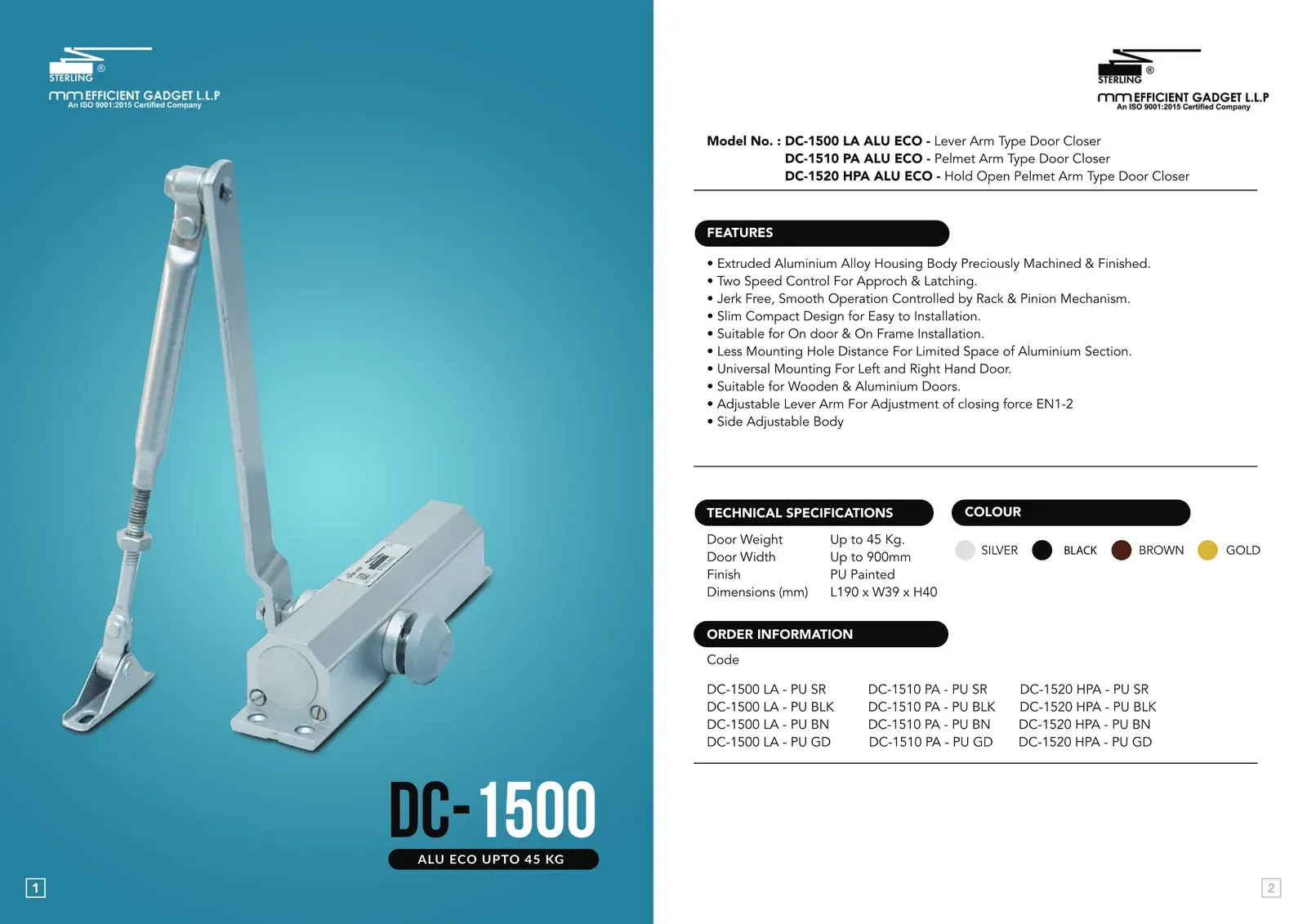

DC 1500
PDF page 4
Surface-mounted door closer for doors up to 45 kg and 900 mm wide, EN 1-2. Model numbers on the spread: DC-1500 LA, DC-1510 PA and DC-1520 HPA.

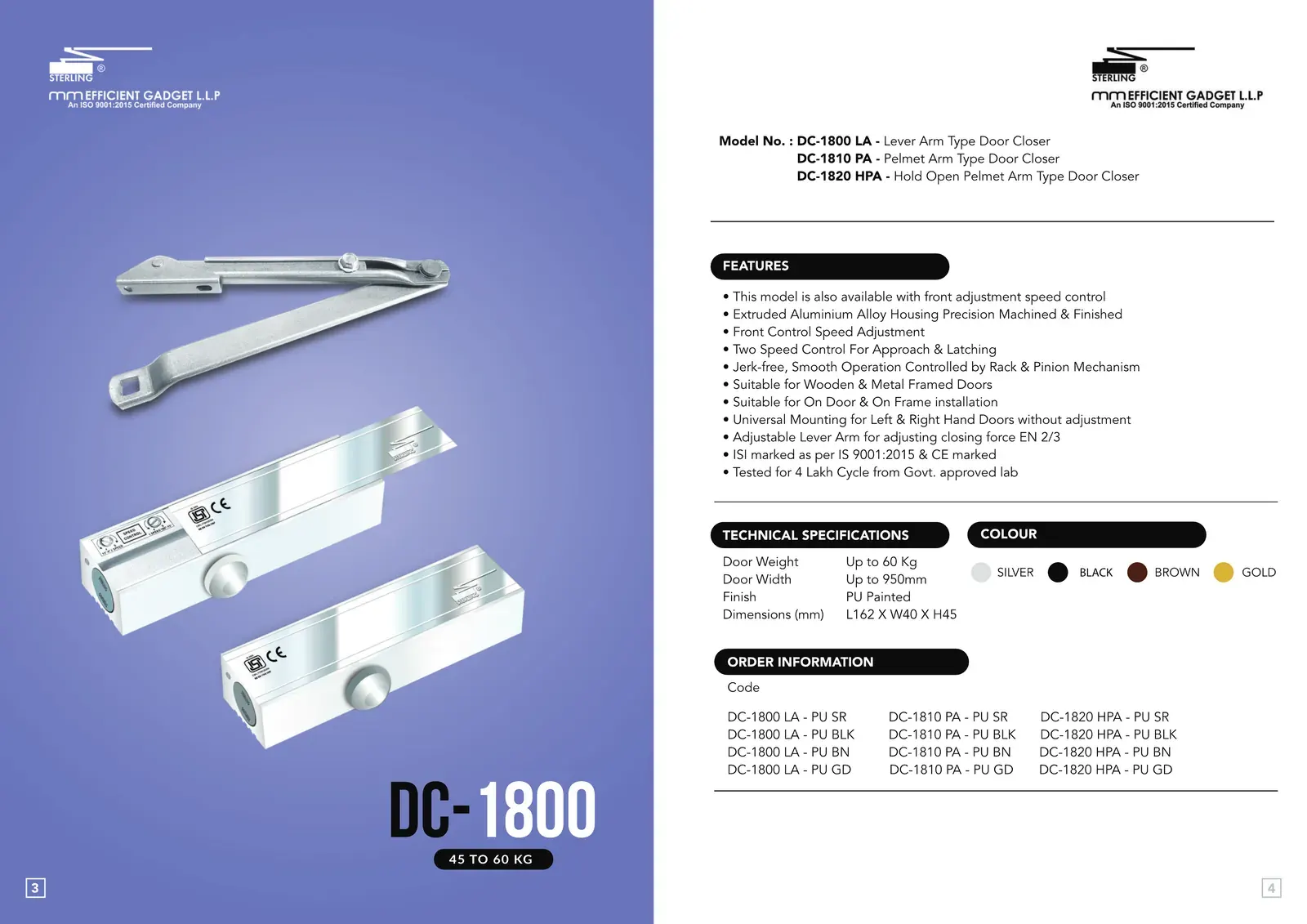

DC 1800 LA
PDF page 5
Surface-mounted door closer for doors up to 60 kg and 950 mm wide, EN 2-3. Model numbers on the spread: DC-1800 LA, DC-1810 PA and DC-1820 HPA.

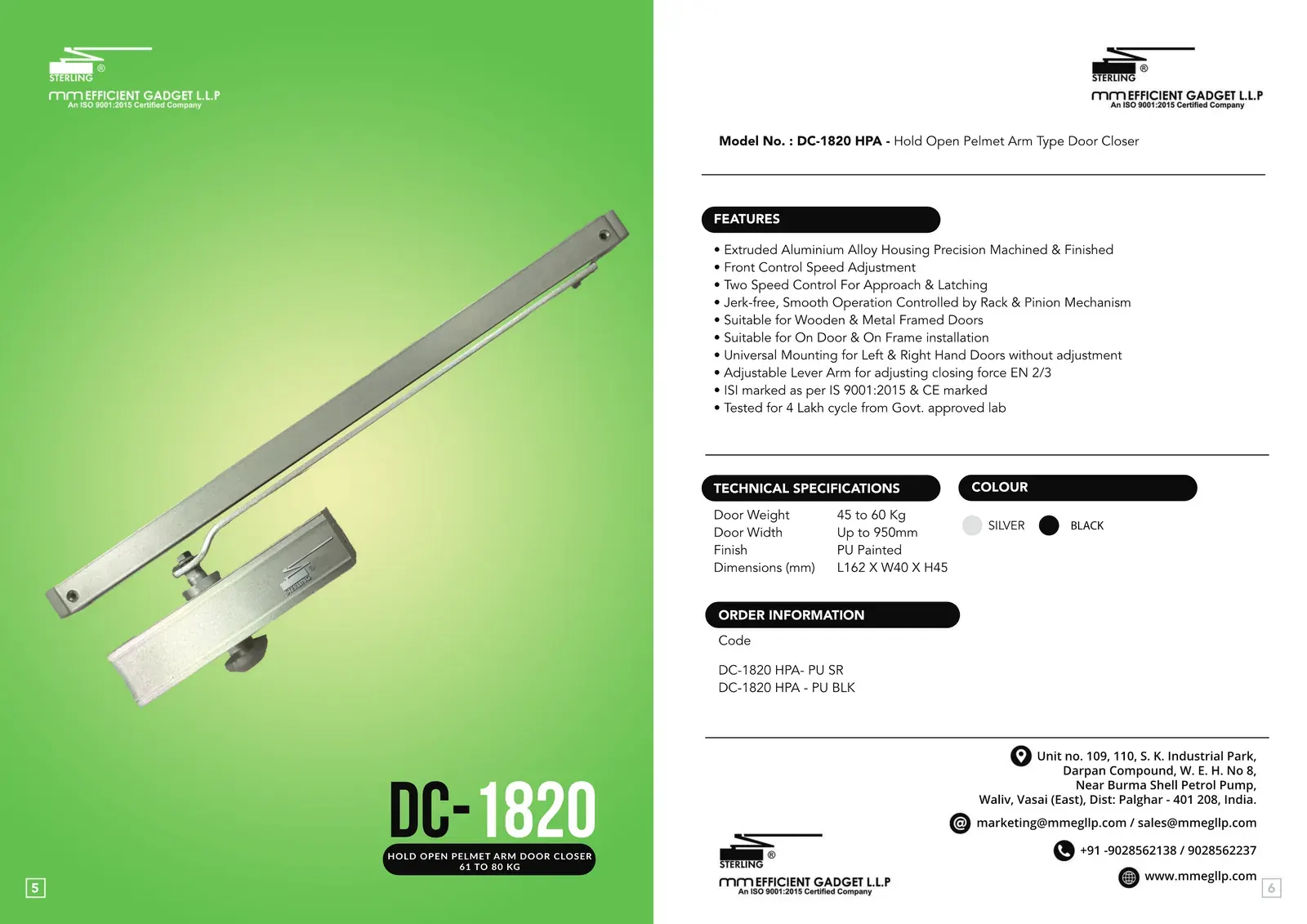

DC 1820
PDF page 6
Surface-mounted door closer for doors up to 60 kg and 950 mm wide, EN 2-3. Model numbers on the spread: DC-1820 HPA.

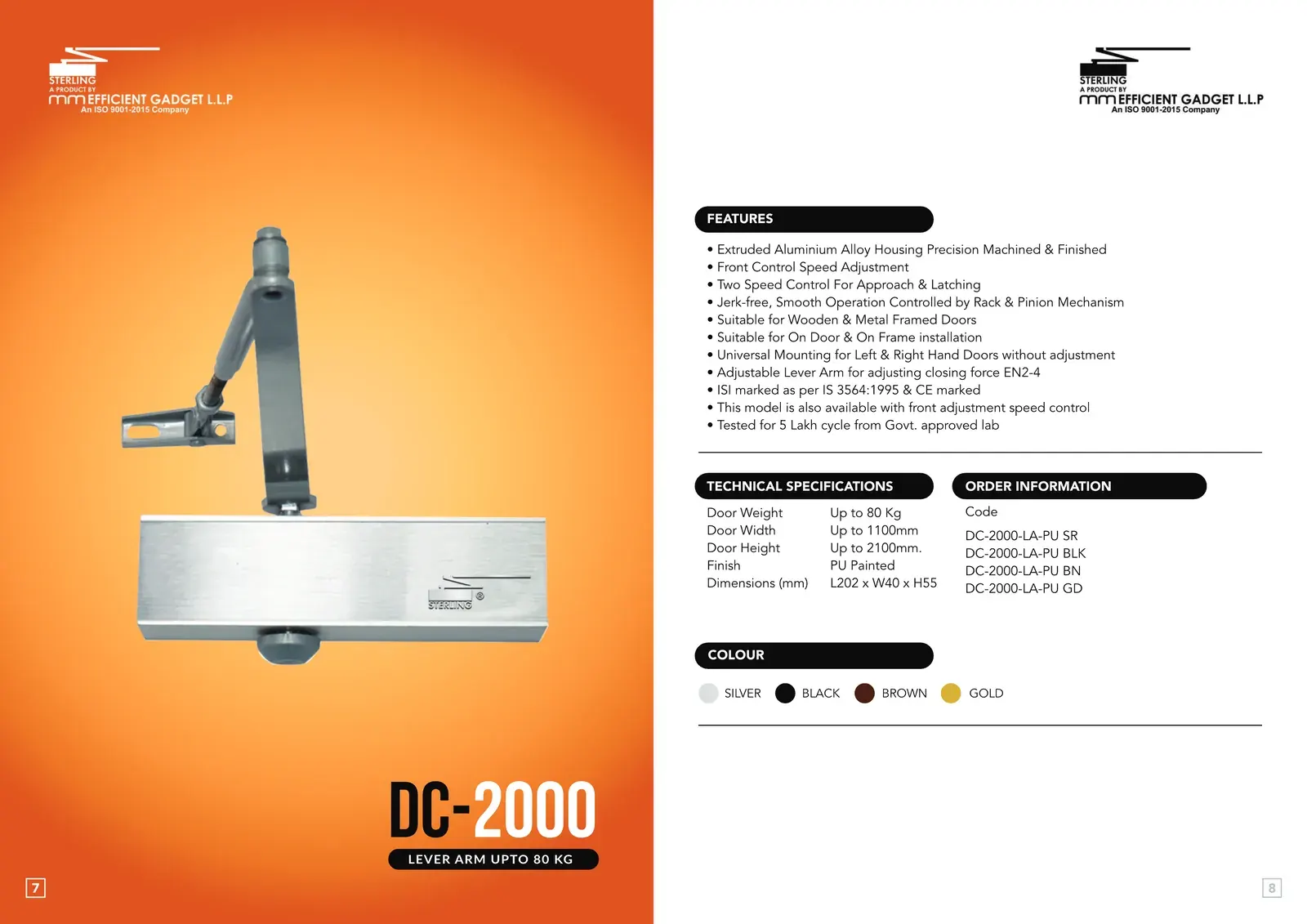

DC 2000
PDF page 7
Surface-mounted door closer for doors up to 80 kg and 1100 mm wide, EN 3-4. Model numbers on the spread: DC-2000 LA.

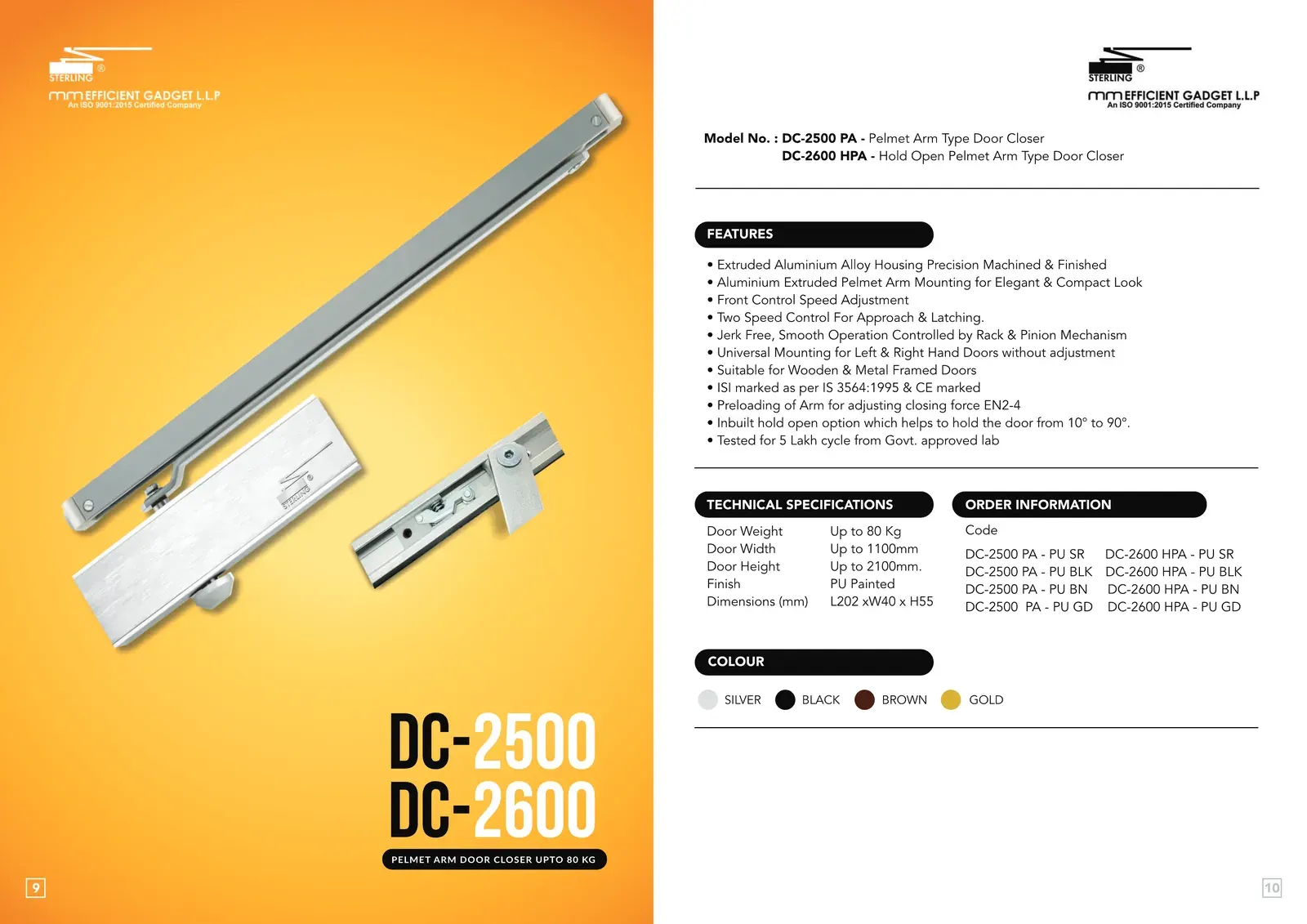

DC 2600
PDF page 8
Surface-mounted door closer for doors up to 80 kg and 1100 mm wide, EN 3-4. Model numbers on the spread: DC-2500 PA and DC-2600 HPA.

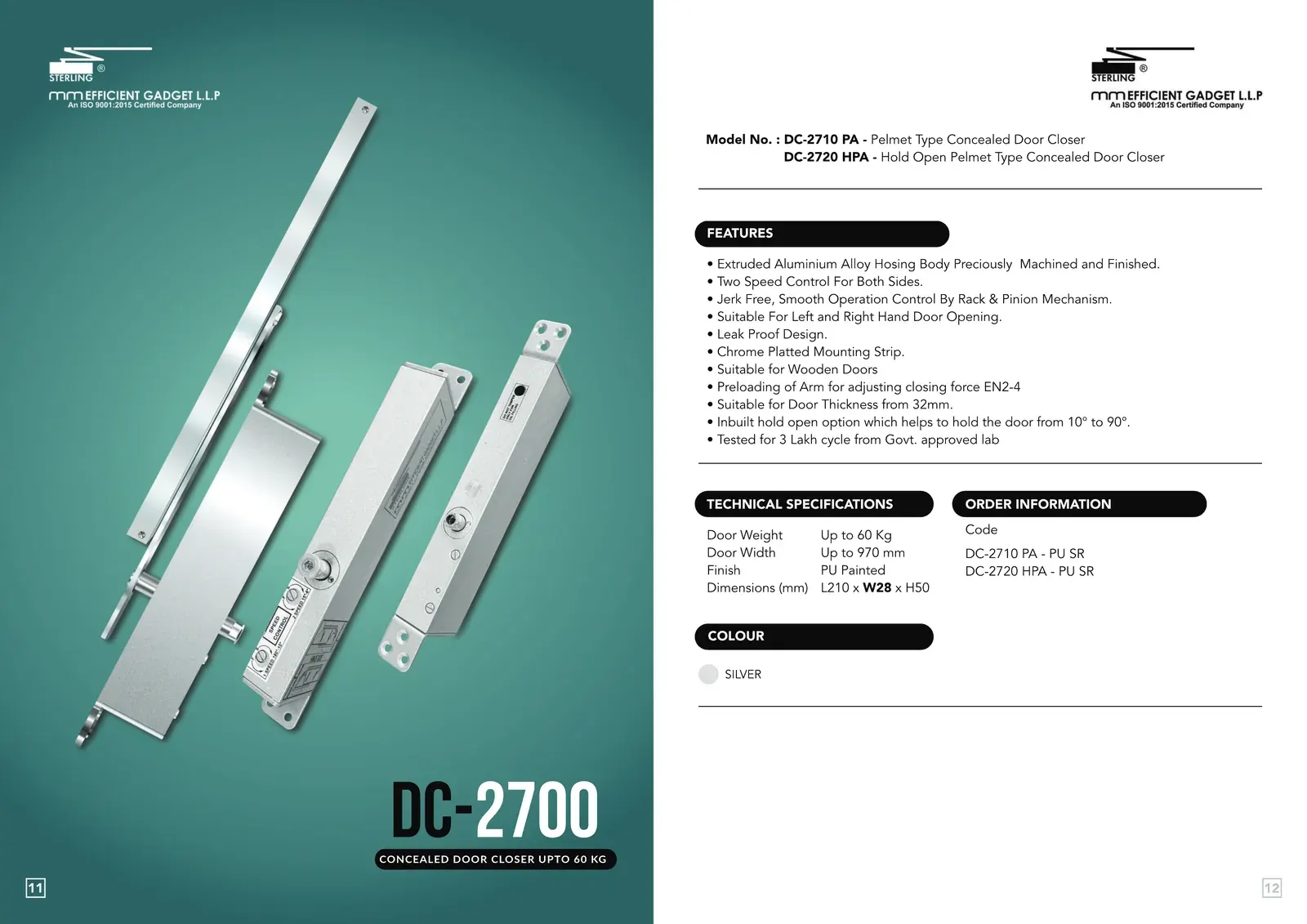

DC 2700
PDF page 9
Concealed door closer for doors up to 60 kg and 970 mm wide, EN 2-3. Model numbers on the spread: DC-2710 PA and DC-2720 HPA.

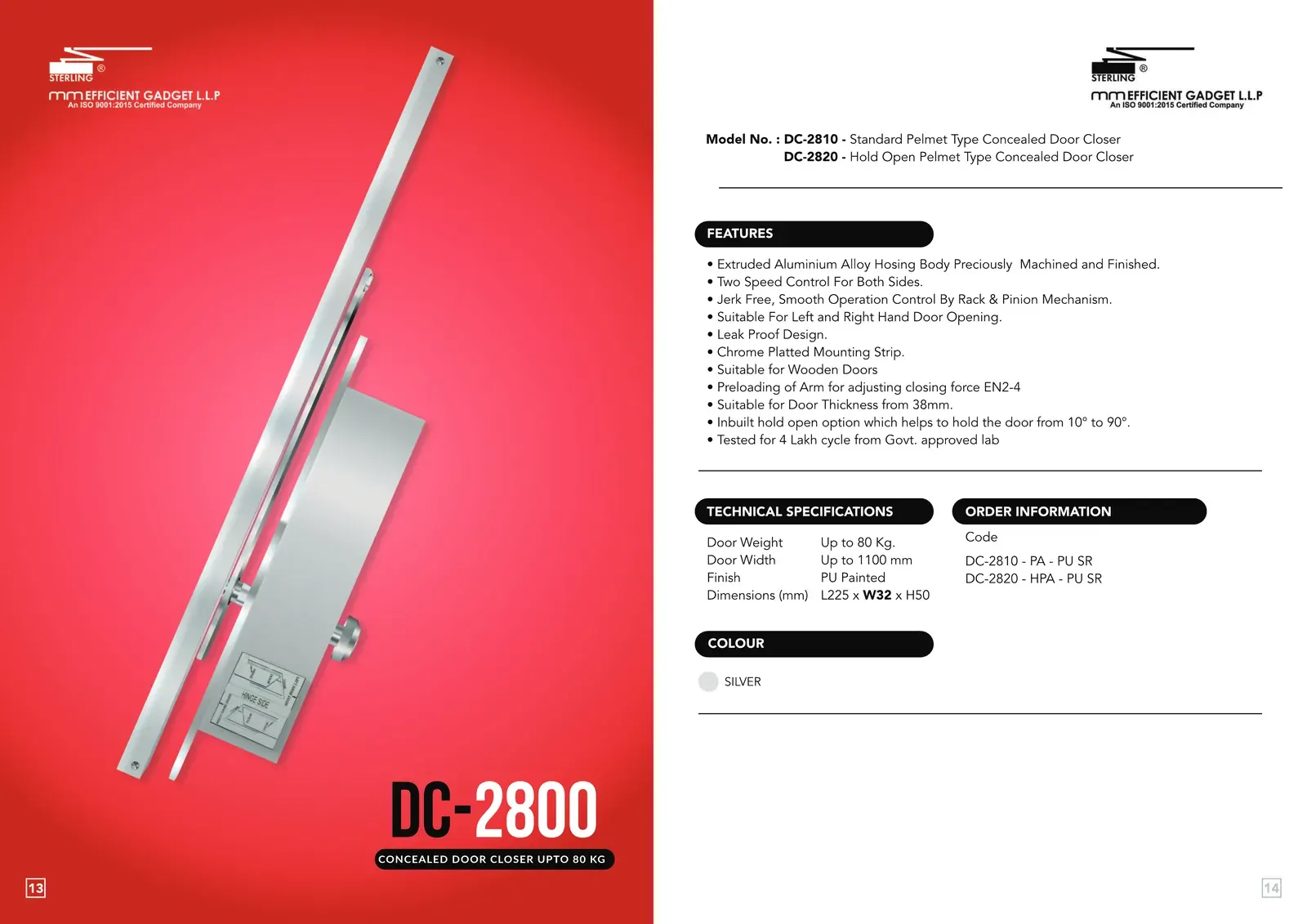

DC 2800
PDF page 10
Concealed door closer for doors up to 80 kg and 970 mm wide, EN 2-4. Model numbers on the spread: DC-2810 PA and DC-2820 HPA.

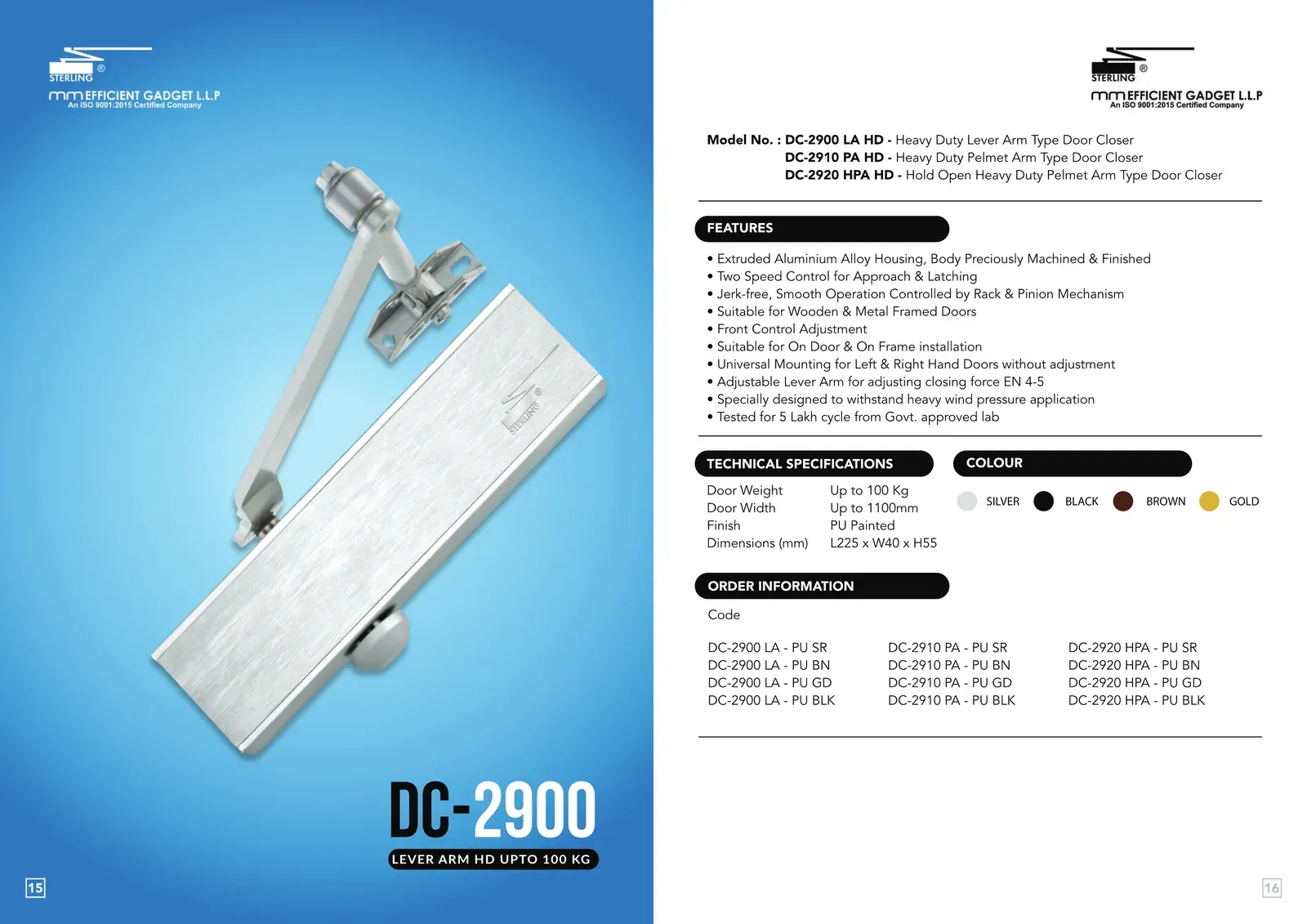

DC 2900
PDF page 11
Surface-mounted door closer for doors up to 100 kg and 1100 mm wide, EN 4-5. Model numbers on the spread: DC-2900 LA HD, DC-2910 PA HD and DC-2920 HPA HD.

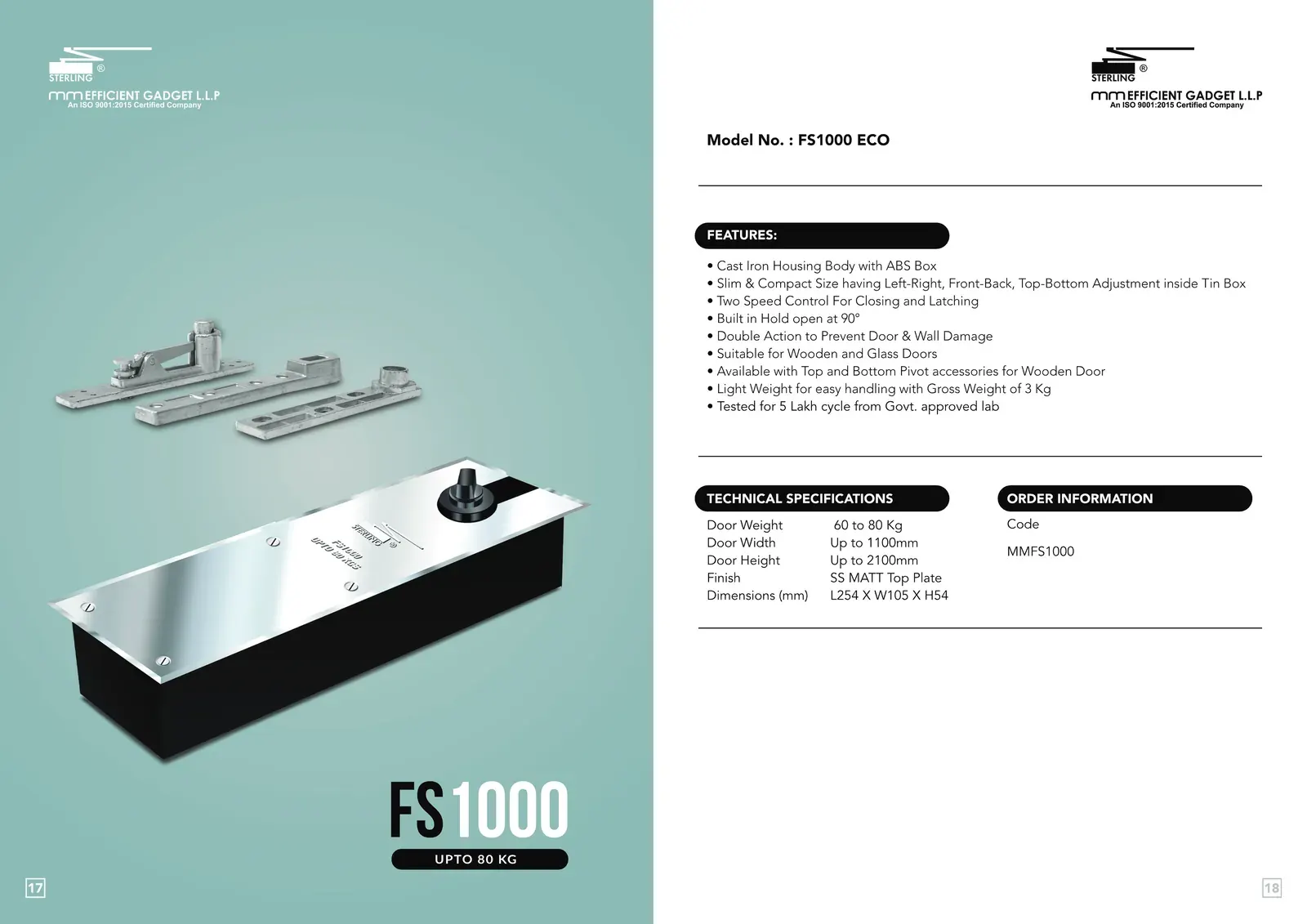

FS 1000
PDF page 12
Floor spring for doors from 60 to 80 kg and up to 1100 mm wide. Order code on the spread: MMFS1000.

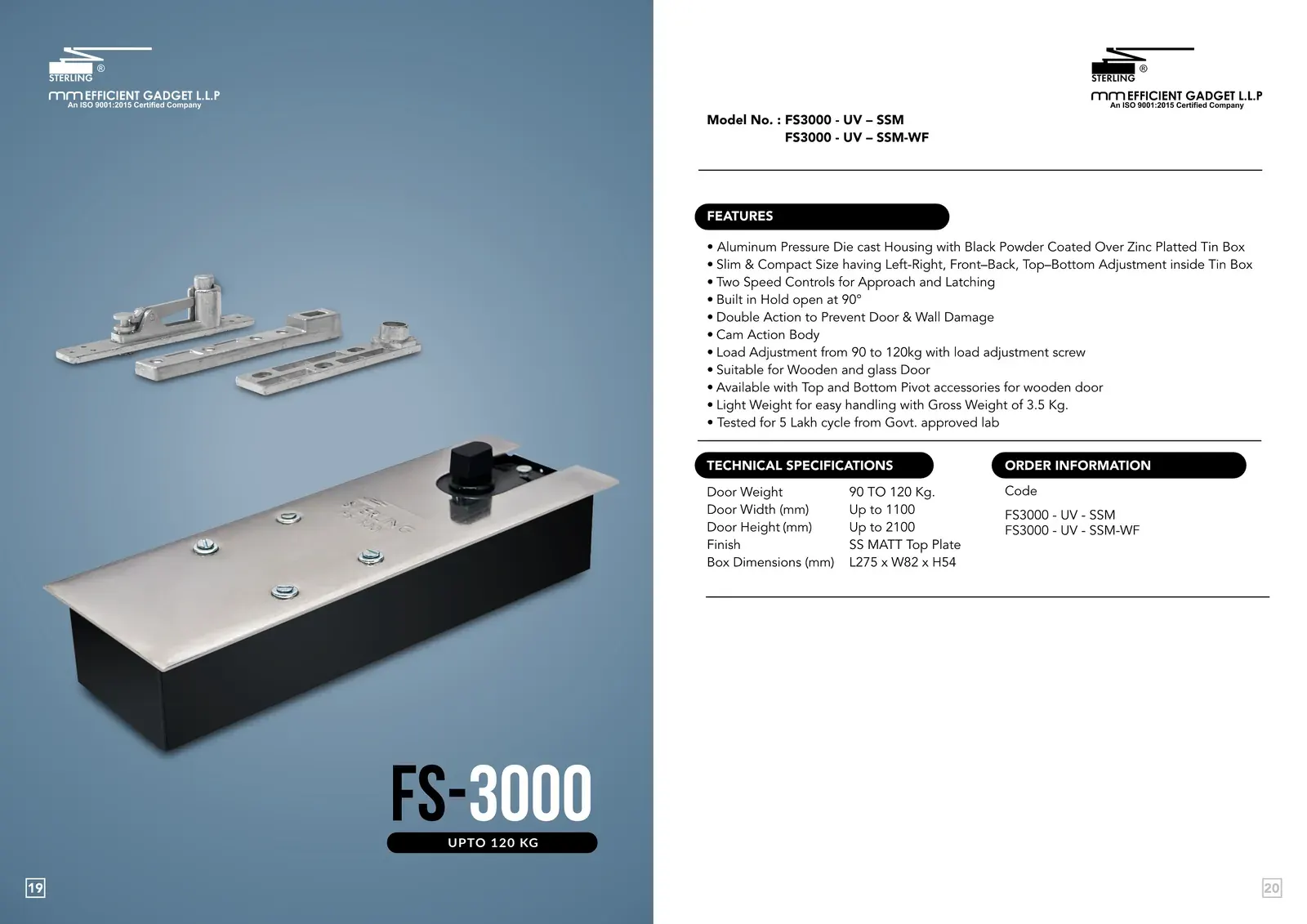

FS 3000
PDF page 13
Floor spring for doors from 90 to 120 kg and up to 1100 mm wide. Order codes on the spread: FS3000 - UV - SSM and FS3000 - UV - SSM-WF.
