Sterling DC 2700

Concealed door closer for wooden doors from 32 mm thick. Rack and pinion, two-speed control, for left and right hand opening.

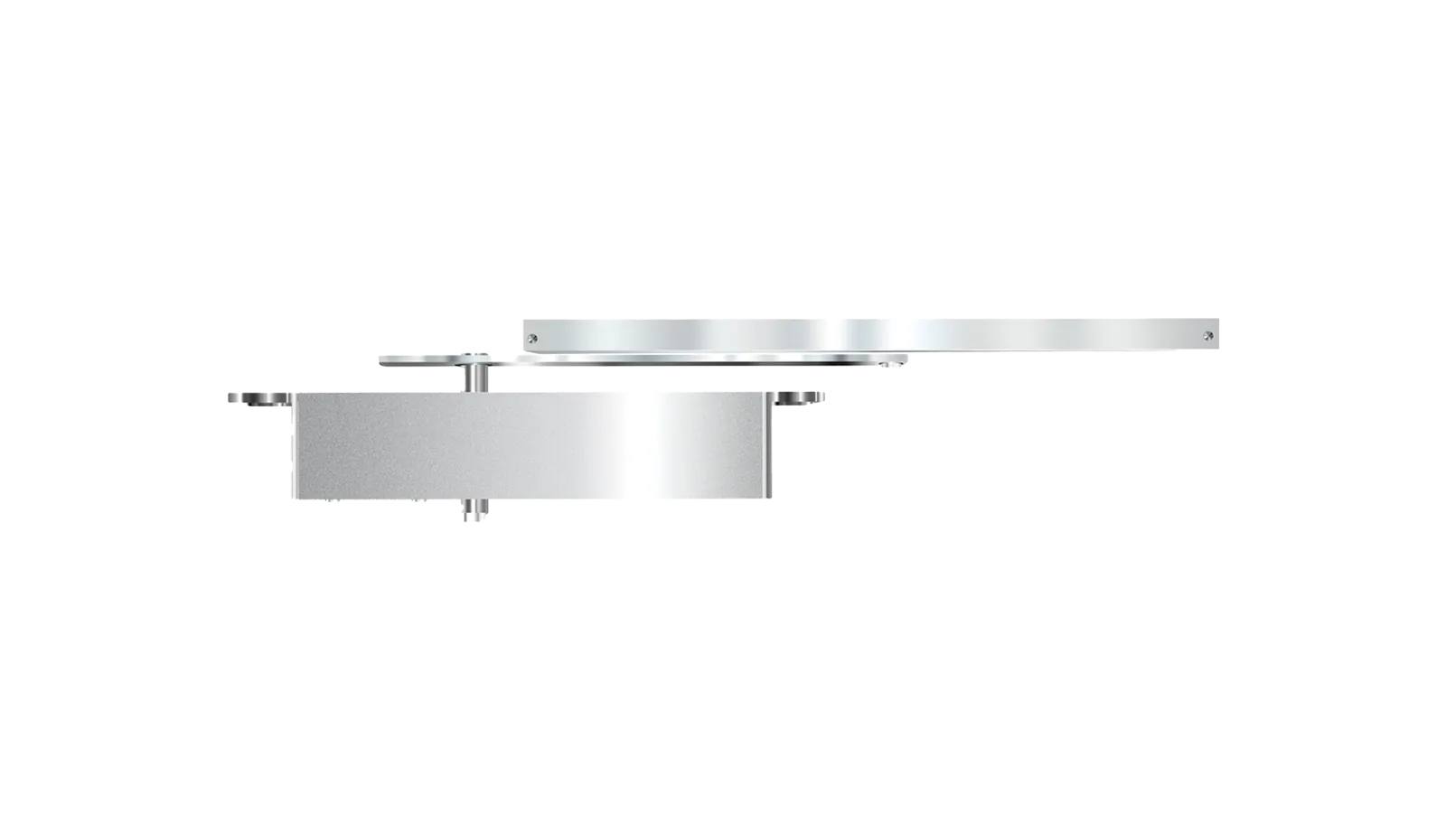

Sterling DC 2700 concealed door closer in silver finish
Silver finish. Body 210 × 28 × 50 mm.Also in black,brown,gold,rose gold.View larger photograph of the DC 2700See the black finish preview of the DC 2700
EN 1154 size
EN 2-3
Door weight, max
60 kg
Door width, max
970 mm
Body L × W × H
210 × 28 × 50 mm
Request a project quoteDownload specifications

Specification

Every row is a stated fact for the DC 2700. Where a fact is not stated for this model, the row says so and names the models that carry it.

Type
Concealed door closer
Mounting
ConcealedSuitable for left and right hand door opening.
Mechanism
Rack and pinion
Speed control
Two-speed control for both sides
Door weight, max
60 kg
Door width, max
970 mm
EN 1154 size
EN 2-3Closing force set by preloading the arm, across EN 2-3
Door height, max
Not stated for this modelStated for the DC 2000, DC 2600, FS 1000 and FS 3000.
Door thickness, min
32 mm
Suitable for
Wooden doors
Body, L × W × H
210 × 28 × 50 mm
Housing
Extruded aluminium alloy housing, precision machined and finished
Finishes
SilverBlackBrownGoldRose goldPU painted
Hold-open
DC-2720 HPA: from 10 to 90 degreesHold-open variant
Variants
Pelmet type concealed, DC-2710 PAHold-open pelmet type concealed, DC-2720 HPA
Order codes
DC-2710 PA - PU SRDC-2720 HPA - PU SR
Other features
Leak-proof designChrome-plated mounting strip

Dimensions
and door.

The body of the DC 2700 drawn to scale from its published dimensions, and the largest door it is rated for.

DC 2700 body drawn to scale in millimetres: front view 210 by 50, end view 28 by 50, plan 210 by 28210502828FrontEndPlanmm
Body of the DC 2700 in millimetres: length 210, width 28, height 50, drawn from the specification. The arm is not drawn: no dimension is published for it.
Door envelope for the DC 2700: a leaf up to 970 mm wide and up to 60 kg, EN 2-3, with the closer body drawn dashed inside the top of the leafinside the leafup to 970up to 60 kgEN 2-3hinge sidemm
Door envelope: a leaf up to 970 mm wide and up to 60 kg, with the closer body drawn dashed inside the top of the leaf, at the same scale. Wooden doors from 32 mm thick. Leaf height is not dimensioned.

Marks, licences
and tests.

Each claim for the DC 2700 with the standard or licence behind it. A mark or test not stated for this model says so and names the models that carry it.

Certification and testing for the DC 2700
ClaimEvidenceApplies to
ISI mark, IS 3564:1995ISI marked under BIS licence CM/L 7700126309DC 2700
CE markingNot stated for this modelCE marked: DC 1800 LA, DC 1820, DC 2000, DC 2600 and DC 2900
Cycle testTested to 3,00,000 cycles in a government-approved labDC 2700
Quality managementISO 9001:2015. Certified quality management system covering the company's manufacturing.MM Efficient Gadget LLP
FacilityUL-audited manufacturing facility. In-house R&D and test lab. Painting and powder coating in-house.MM Efficient Gadget LLP
OriginMade in IndiaDC 2700

Certificates and licence details

Documents

Each file states its format and size before you download it. Files not yet published on this site are sent on request.

Files for the DC 2700, with format and size
DocumentFormatSize
DC 2700 installation guidePDFOn request
Sterling DC 2700 datasheetPDFOn request
Sterling product brochureAll door closers and floor springsPDF9.5 MB
ISO 9001:2015Quality management system certificationPDFOn request
BIS licence: door closersISI mark to IS 3564:1995, CM/L No. 7700126309PDFOn request

Related guides

Questions about
the DC 2700.

Is the Sterling DC 2700 a concealed door closer?

Yes. The DC 2700 is a concealed closer, so the body is hidden within the door or frame rather than surface mounted. The body is 28 mm wide (L210 x W28 x H50 mm) and suits wooden doors from 32 mm thick.

What door weight does the DC 2700 support?

It is rated for doors up to 60 kg and up to 970 mm wide, with EN 2-3 closing force set by preloading the arm. The DC-2720 HPA variant holds the door open from 10 to 90 degrees.

Is the DC 2700 ISI marked and cycle tested?

Yes. The DC 2700 is ISI marked to IS 3564:1995 under BIS licence CM/L No. 7700126309 and tested to 3,00,000 cycles in a government-approved lab. It has a leak-proof design and a chrome-plated mounting strip, and is PU painted; it is offered in silver, black, brown, gold and rose gold.

The models rated nearest to the DC 2700: the same type first, then the closest of another type.

Specifying the DC 2700?

Send the door schedule with quantities, door weights, widths and finishes. Sterling quotes per project.

Request a project quote

Fitting, adjustment or spares?

Questions about fitting, adjustment or spares go straight to the Sterling sales desk. For warranty terms on the DC 2700, contact us.
