Sterling DC 2800

Concealed door closer for wooden doors from 38 mm thick. Rack and pinion, two-speed control, for left and right hand opening.

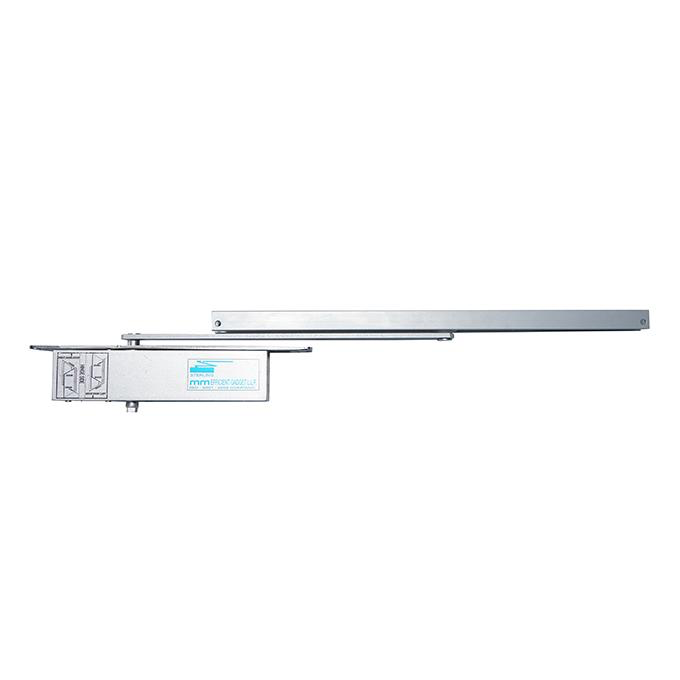

Sterling DC 2800 concealed door closer in silver finish
Silver finish. Body 225 × 32 × 50 mm.Also in black,brown,gold,rose gold.View larger photograph of the DC 2800
DC 2800 body drawn to scale in millimetres: front view 225 by 50, end view 32 by 50, plan 225 by 32225503232FrontEndPlanmm
Body of the DC 2800 in millimetres: length 225, width 32, height 50, drawn from the specification. The arm is not drawn: no dimension is published for it.
EN 1154 size
EN 2-4
Door weight, max
80 kg
Door width, max
970 mm
Body L × W × H
225 × 32 × 50 mm
Request a project quoteDownload specifications

Specification

Every row is a stated fact for the DC 2800. Where a fact is not stated for this model, the row says so and names the models that carry it.

Type
Concealed door closer
Mounting
ConcealedSuitable for left and right hand door opening.
Mechanism
Rack and pinion
Speed control
Two-speed control for both sides
Door weight, max
80 kg
Door width, max
970 mm
EN 1154 size
EN 2-4Closing force set by preloading the arm, across EN 2-4
Door height, max
Not stated for this modelStated for the DC 2000, DC 2600, FS 1000 and FS 3000.
Door thickness, min
38 mm
Suitable for
Wooden doors
Body, L × W × H
225 × 32 × 50 mm
Housing
Extruded aluminium alloy housing, precision machined and finished
Finishes
SilverBlackBrownGoldRose goldPU painted
Hold-open
DC-2820 HPA: from 10 to 90 degreesHold-open variant
Variants
Standard pelmet type concealed, DC-2810 PAHold-open pelmet type concealed, DC-2820 HPA
Order codes
DC-2810 - PA - PU SRDC-2820 - HPA - PU SR
Other features
Leak-proof designChrome-plated mounting strip

Dimensions
and door.

The body of the DC 2800 is drawn to scale beside its photograph above. Here, the largest door it is rated for.

Door envelope for the DC 2800: a leaf up to 970 mm wide and up to 80 kg, EN 2-4, with the closer body drawn dashed inside the top of the leafinside the leafup to 970up to 80 kgEN 2-4hinge sidemm
Door envelope: a leaf up to 970 mm wide and up to 80 kg, with the closer body drawn dashed inside the top of the leaf, at the same scale. Wooden doors from 38 mm thick. Leaf height is not dimensioned.

Marks, licences
and tests.

Each claim for the DC 2800 with the standard or licence behind it. A mark or test not stated for this model says so and names the models that carry it.

Certification and testing for the DC 2800
ClaimEvidenceApplies to
ISI mark, IS 3564:1995ISI marked under BIS licence CM/L 7700126309DC 2800
CE markingNot stated for this modelCE marked: DC 1800 LA, DC 1820, DC 2000, DC 2600 and DC 2900
Cycle testTested to 4,00,000 cycles in a government-approved labDC 2800
Quality managementISO 9001:2015. Certified quality management system covering the company's manufacturing.MM Efficient Gadget LLP
FacilityUL-audited manufacturing facility. In-house R&D and test lab. Painting and powder coating in-house.MM Efficient Gadget LLP
OriginMade in IndiaDC 2800

Certificates and licence details

Documents

Each file states its format and size before you download it. Files not yet published on this site are sent on request.

Files for the DC 2800, with format and size
DocumentFormatSize
DC 2800 installation guidePDFOn request
Sterling DC 2800 datasheetPDFOn request
Sterling product brochureAll door closers and floor springsPDF9.5 MB
ISO 9001:2015Quality management system certificationPDFOn request
BIS licence: door closersISI mark to IS 3564:1995, CM/L No. 7700126309PDFOn request

Related guides

Questions about
the DC 2800.

What door weight does the Sterling DC 2800 support?

The DC 2800 is rated for doors up to 80 kg and up to 970 mm wide, fitted concealed within the door leaf rather than on its face.

Does the Sterling DC 2800 have a hold-open function?

Yes, as the DC-2820 HPA variant, which has an inbuilt hold-open option that holds the door anywhere from 10 to 90 degrees. The DC-2810 PA is the standard version without hold-open.

What door thickness does the DC 2800 need?

It suits wooden doors from 38 mm thickness upwards. The concealed body measures L225 x W32 x H50 mm and includes a chrome-plated mounting strip.

What closing force does the DC 2800 offer, and is it ISI marked?

Closing force is adjusted by preloading the arm across EN 2-4, with two-speed control for both sides and a leak-proof design. The DC 2800 is ISI marked to IS 3564:1995 under BIS licence CM/L No. 7700126309 and tested to 4,00,000 cycles in a government-approved lab.

The models rated nearest to the DC 2800: the same type first, then the closest of another type.

  • Sterling DC 2700 concealed door closer

    Sterling DC 2700

    Concealed, EN 2-3, rated 60 kg and 970 mm.

    Wooden doors from 32 mm thick.

  • Sterling DC 2000 surface-mounted door closer

    Sterling DC 2000

    Surface mounted, EN 3-4, rated 80 kg and 1100 mm.

    Front control adjustment.

  • Sterling DC 2600 surface-mounted door closer

    Sterling DC 2600

    Surface mounted, EN 3-4, rated 80 kg and 1100 mm.

    Front control adjustment. Holds open from 10 to 90 degrees.

Specifying the DC 2800?

Send the door schedule with quantities, door weights, widths and finishes. Sterling quotes per project.
