Sterling DC 2000

Surface-mounted door closer for wooden and aluminium doors. Rack and pinion, two-speed control with front adjustment, universal left and right hand.

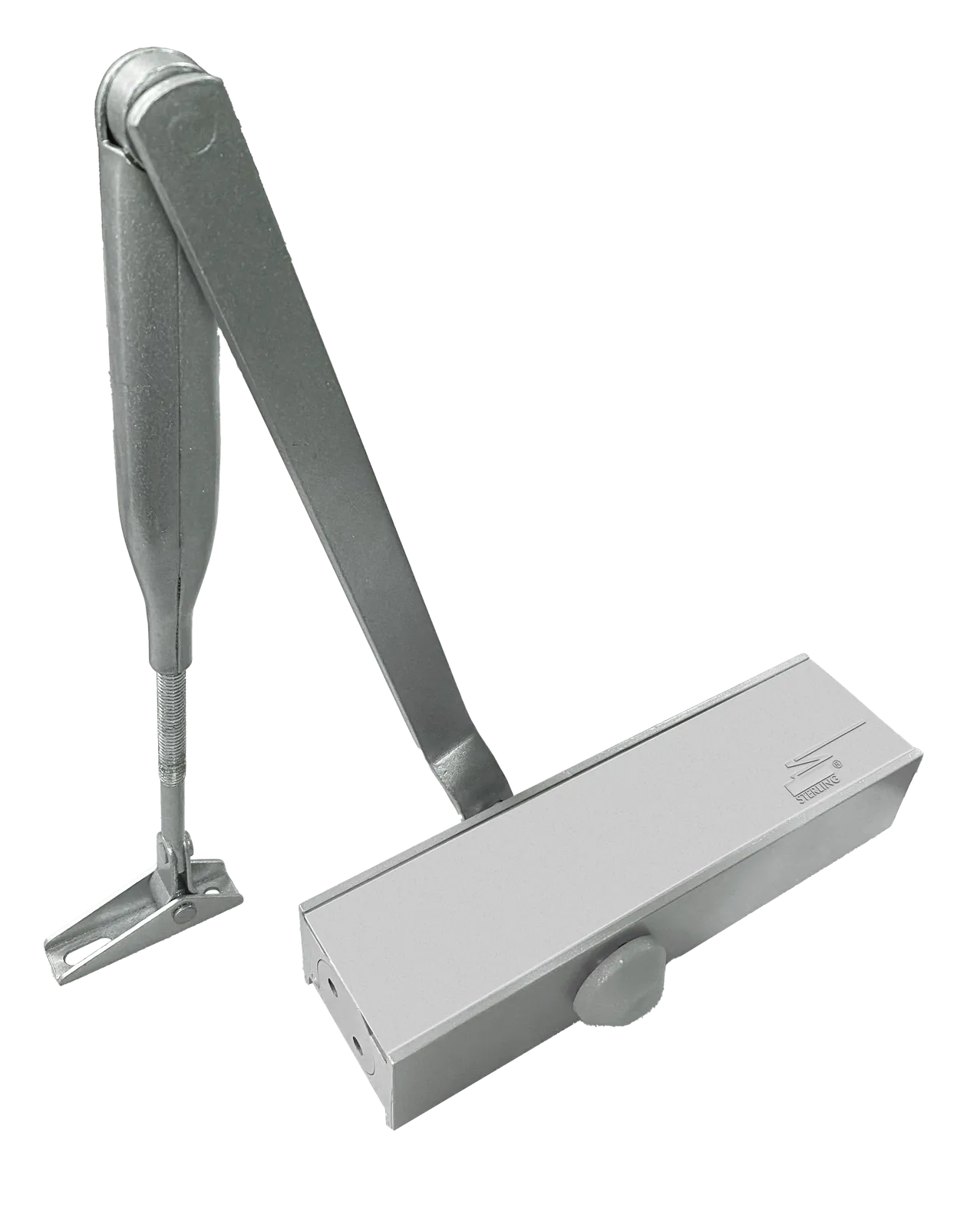

Sterling DC 2000 surface-mounted door closer in silver finish
Silver finish. Body 202 × 40 × 55 mm.Also in black finish preview,brown finish preview,gold finish preview,rose gold finish preview.View larger photograph of the DC 2000See the black finish preview of the DC 2000
EN 1154 size
EN 3-4
Door weight, max
80 kg
Door width, max
1100 mm
Body L × W × H
202 × 40 × 55 mm
Request a project quoteDownload specifications

Specification

Every row is a stated fact for the DC 2000. Where a fact is not stated for this model, the row says so and names the models that carry it.

Type
Surface-mounted door closer
Mounting
Surface mountedSuitable for on-door and on-frame installation. Universal mounting for left and right hand doors without adjustment.
Mechanism
Rack and pinion
Speed control
Two-speed control for approach and latchingFront control adjustment
Door weight, max
80 kg
Door width, max
1100 mm
EN 1154 size
EN 3-4Adjustable lever arm for setting the closing force across EN 3-4
Door height, max
2100 mm
Suitable for
Wooden and aluminium doors
Body, L × W × H
202 × 40 × 55 mm
Housing
Extruded aluminium alloy housing, precision machined and finished
Finishes
SilverBlackBrownGoldRose goldPU painted
Hold-open
Not stated for this modelStated for the DC 1500, DC 1820, DC 2600, DC 2700, DC 2800, DC 2900, FS 1000 and FS 3000.
Arm options
Lever arm, DC-2000 LA
Order codes
DC-2000-LA-PU SRDC-2000-LA-PU BLK

Housing detail

Sterling DC 2000 surface-mounted door closer in silver finish, close-up of the housing with the embossed Sterling mark
The housing of the DC 2000 close up, with the embossed Sterling mark. Extruded aluminium alloy housing, precision machined and finished.

Dimensions
and door.

The body of the DC 2000 drawn to scale from its published dimensions, and the largest door it is rated for.

DC 2000 body drawn to scale in millimetres: front view 202 by 55, end view 40 by 55, plan 202 by 40202554040FrontEndPlanmm
Body of the DC 2000 in millimetres: length 202, width 40, height 55, drawn from the specification. The arm is not drawn: no dimension is published for it.
Door envelope for the DC 2000: a leaf up to 1100 mm wide and up to 80 kg, EN 3-4, with the closer body at the top on the hinge side and the opposite-hand position shown dashedas drawnopposite handup to 1100up to 80 kgEN 3-4hinge sidemm
Door envelope: a leaf up to 1100 mm wide and up to 80 kg, with the closer body drawn at the same scale as the leaf. Mounting is universal; the dashed body is the opposite-hand position. Leaf height is not dimensioned.

Photographs
of the DC 2000.

Studio photography, October 2026, on the grey studio ground as photographed. The eight finish previews are studio photographs digitally recoloured to show the black, brown, gold and rose gold finishes. Open one to see it larger.

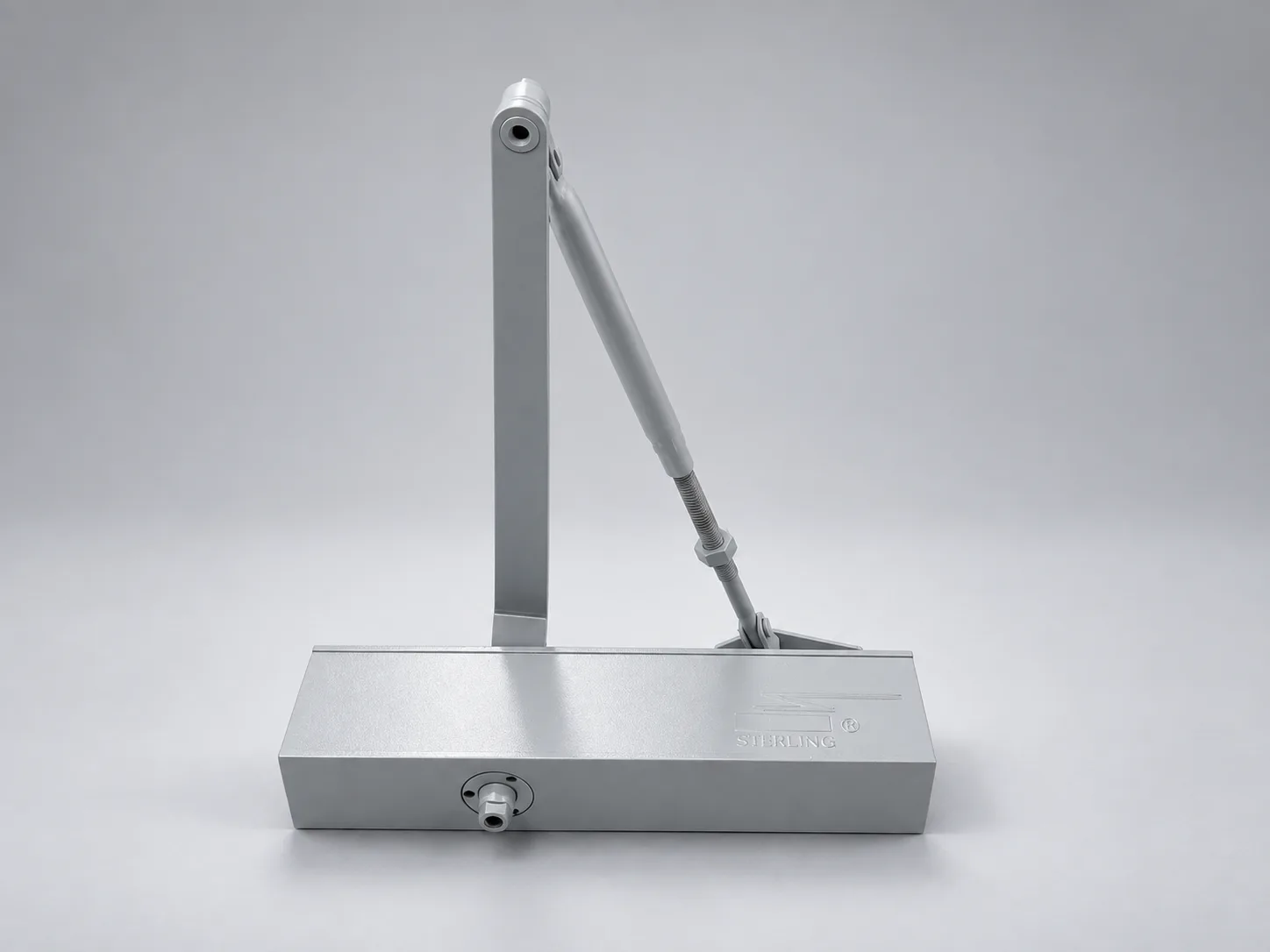

  • Sterling DC 2000 door closer body with lever arm, silver, front view, studio photograph
    Sterling DC 2000 door closer body with lever arm, silver, front view. Studio photograph.

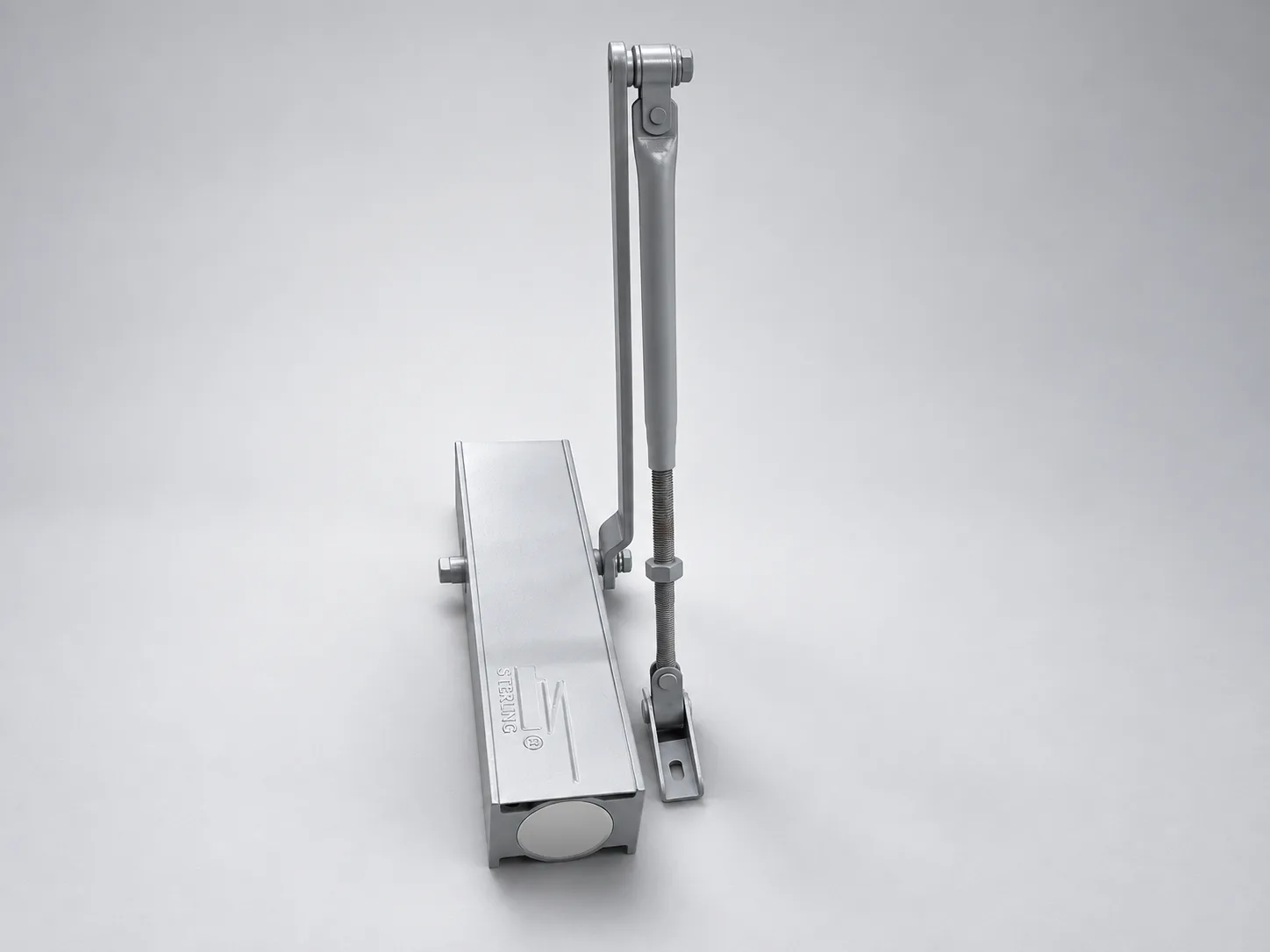

  • Sterling DC 2000 door closer body with lever arm, silver, three quarter view, studio photograph
    Sterling DC 2000 door closer body with lever arm, silver, three quarter view. Studio photograph.

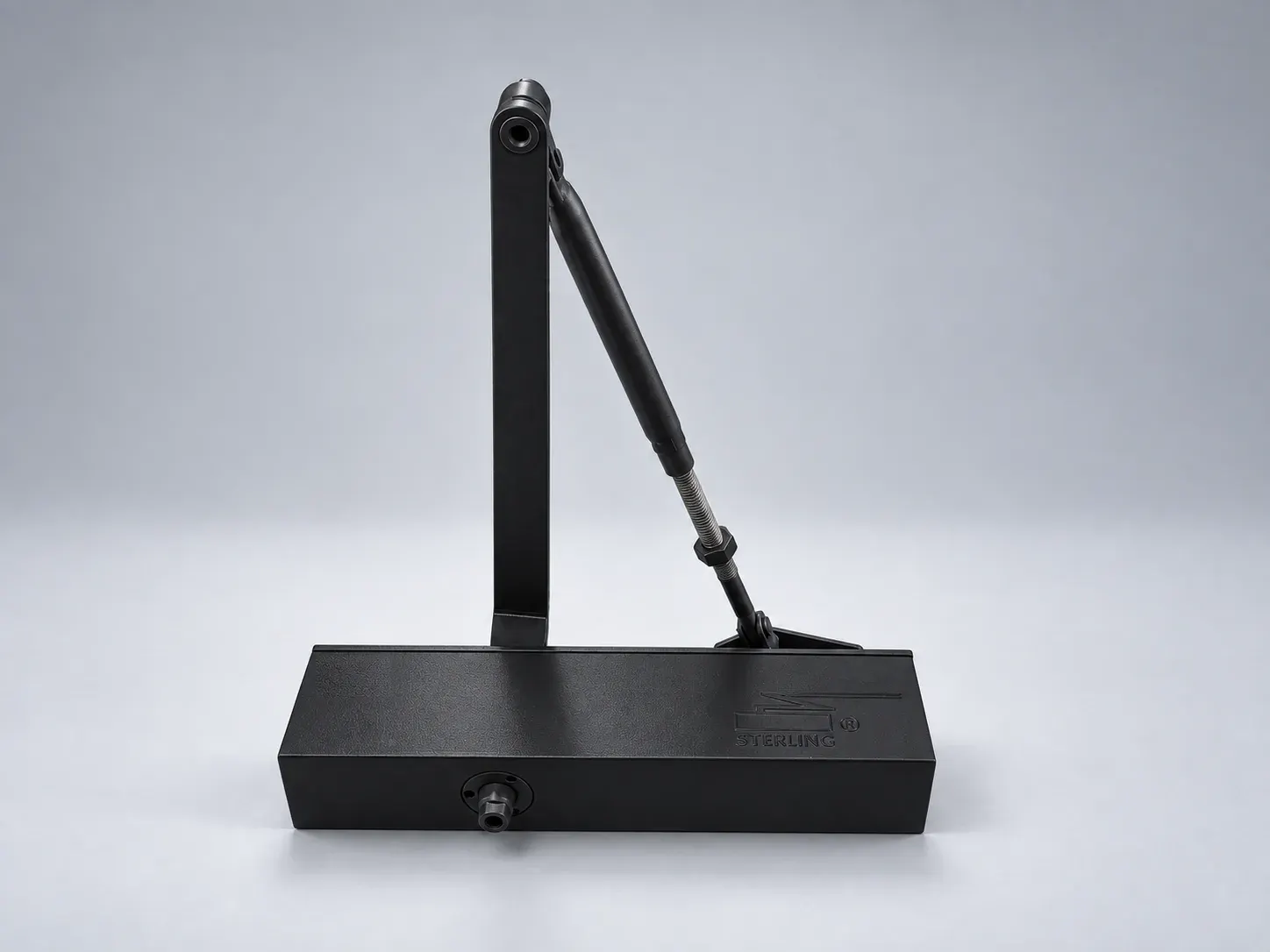

  • Sterling DC 2000 door closer with its lever arm raised, front view, digitally recoloured studio photograph showing the black finish
    Finish preview: a studio photograph digitally recoloured to show the black finish.

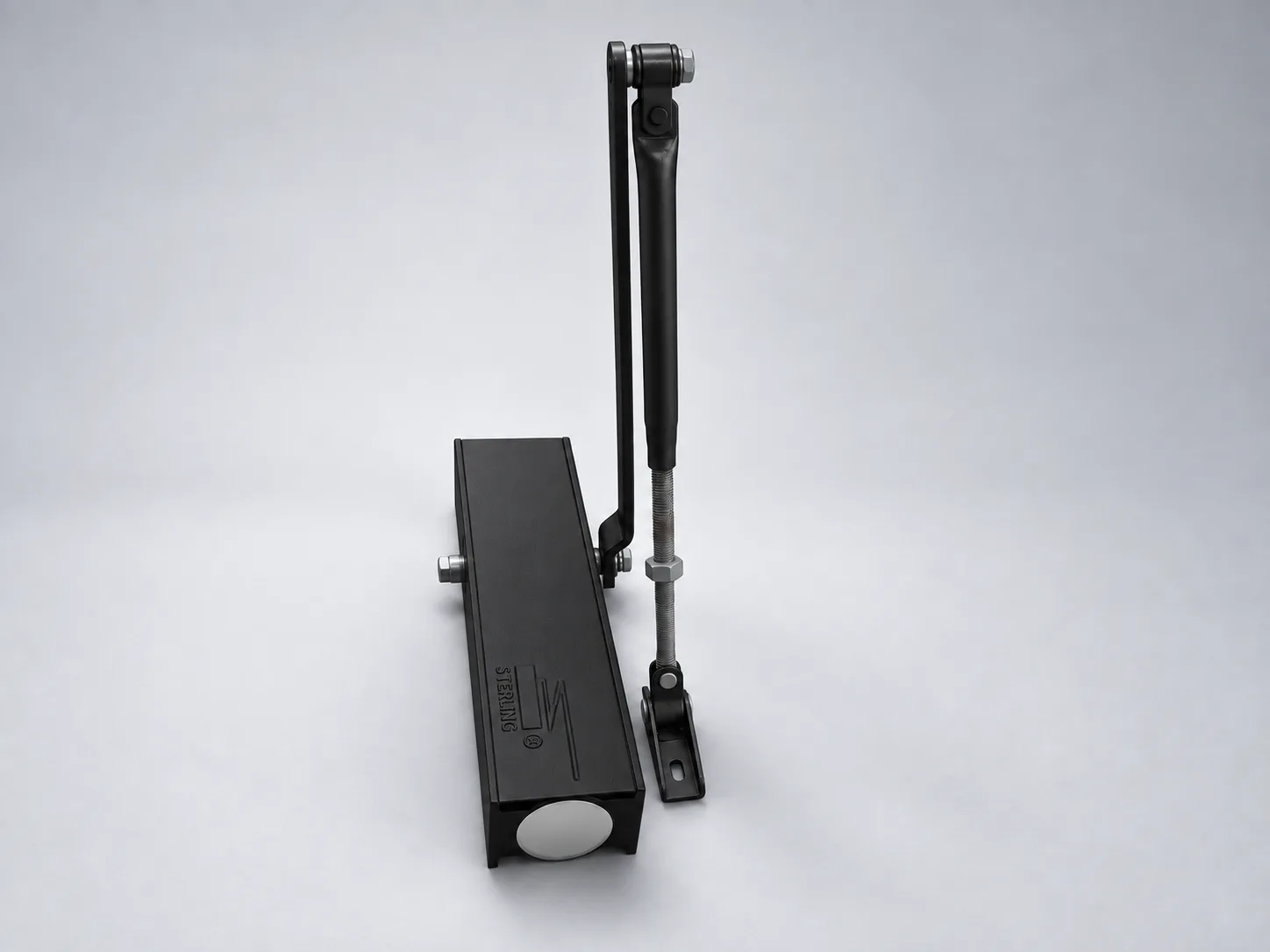

  • Sterling DC 2000 door closer with its lever arm raised, three quarter view from the end cap, digitally recoloured studio photograph showing the black finish
    Finish preview: a studio photograph digitally recoloured to show the black finish.

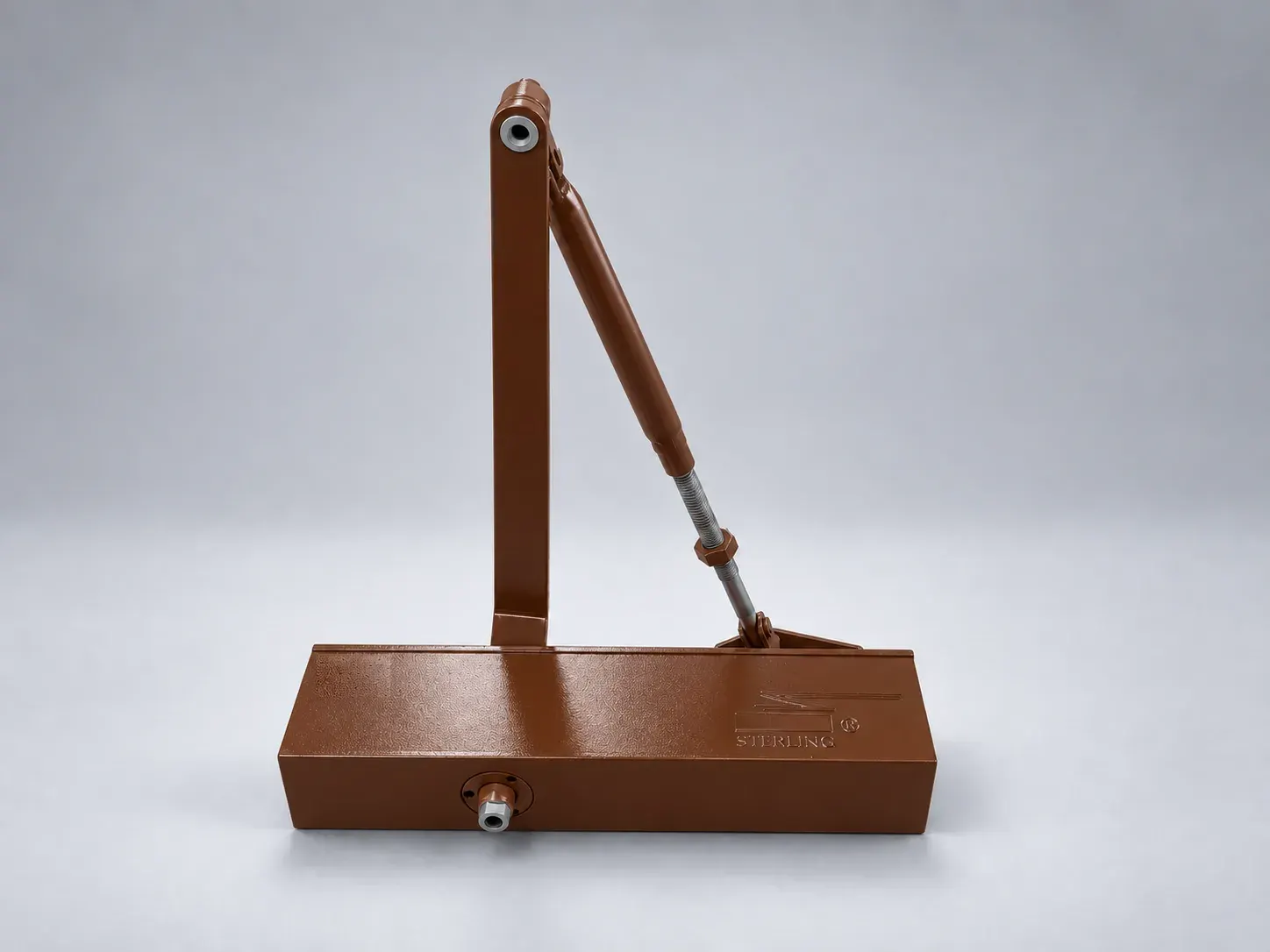

  • Sterling DC 2000 door closer with its lever arm raised, front view, digitally recoloured studio photograph showing the brown finish
    Finish preview: a studio photograph digitally recoloured to show the brown finish.

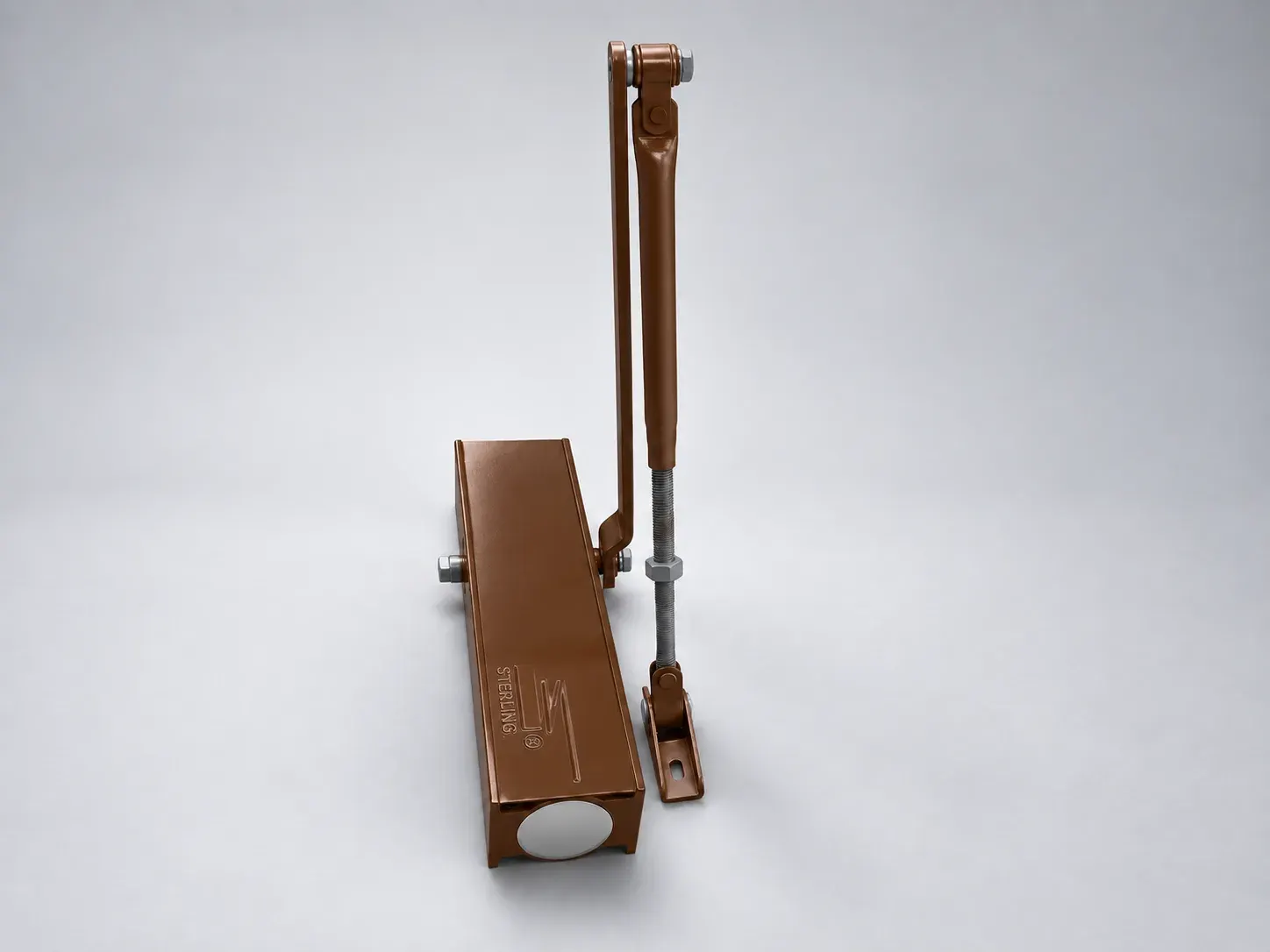

  • Sterling DC 2000 door closer with its lever arm raised, three quarter view from the end cap, digitally recoloured studio photograph showing the brown finish
    Finish preview: a studio photograph digitally recoloured to show the brown finish.

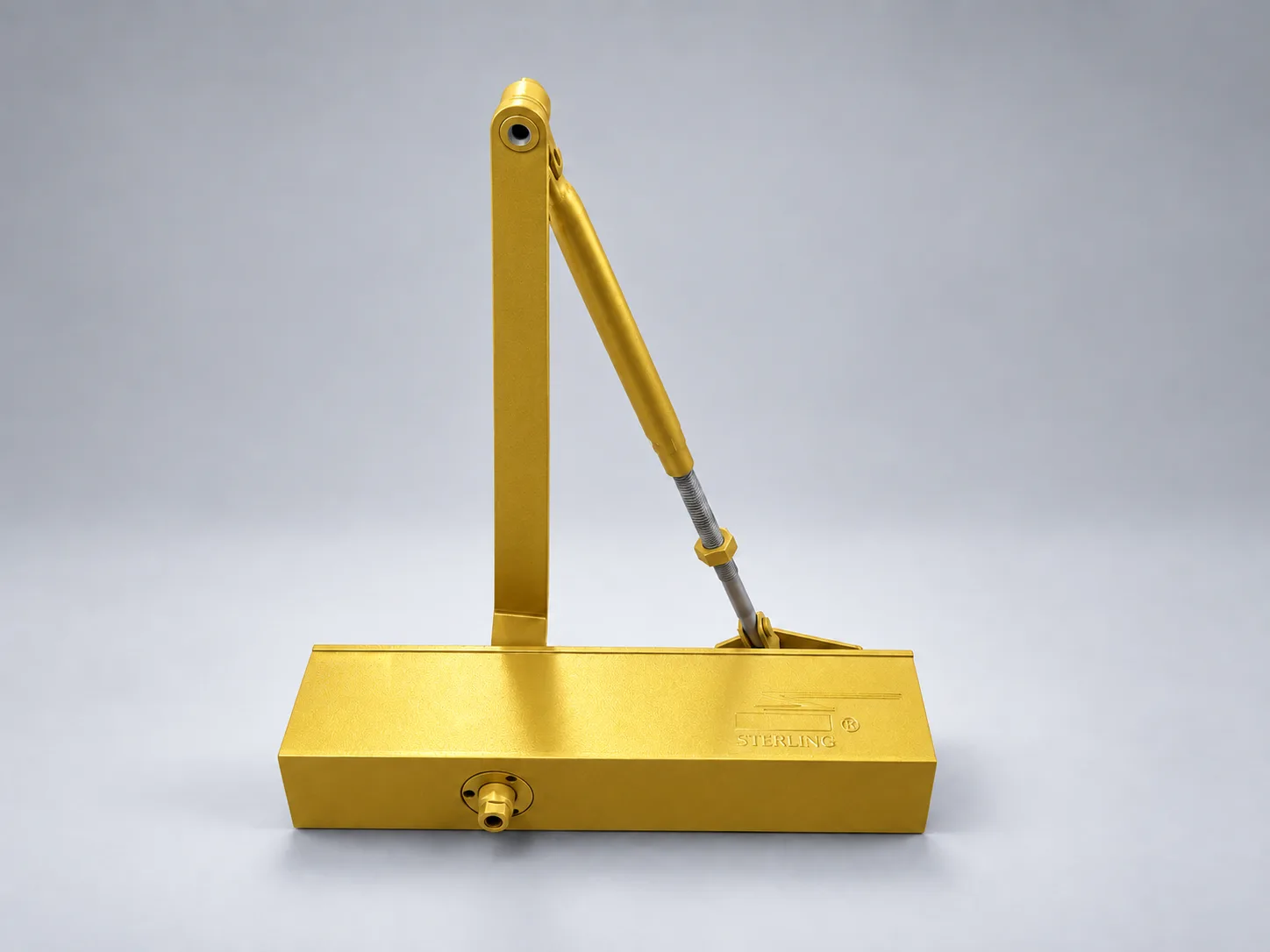

  • Sterling DC 2000 door closer with its lever arm raised, front view, digitally recoloured studio photograph showing the gold finish
    Finish preview: a studio photograph digitally recoloured to show the gold finish.

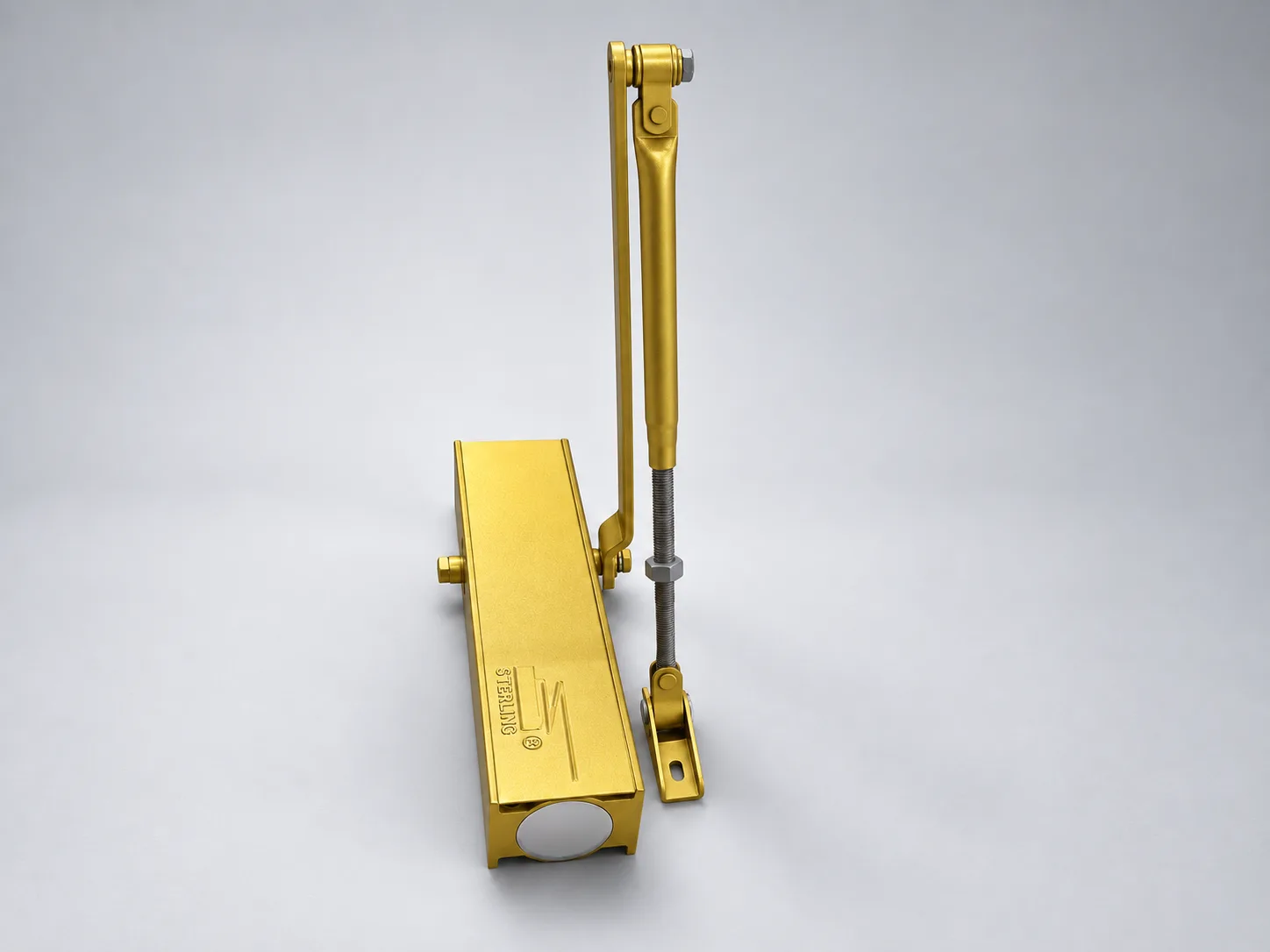

  • Sterling DC 2000 door closer with its lever arm raised, three quarter view from the end cap, digitally recoloured studio photograph showing the gold finish
    Finish preview: a studio photograph digitally recoloured to show the gold finish.

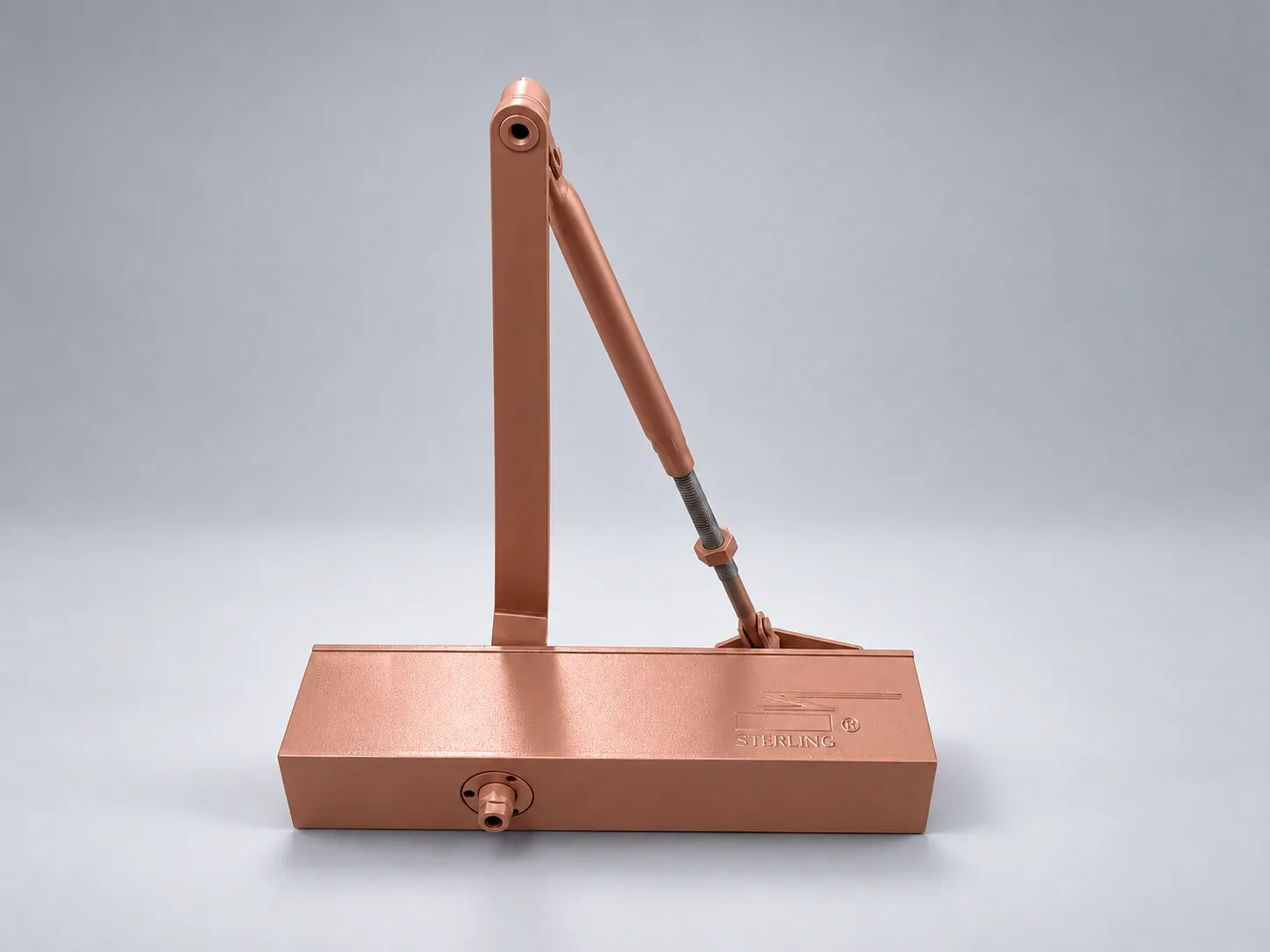

  • Sterling DC 2000 door closer with its lever arm raised, front view, digitally recoloured studio photograph showing the rose gold finish
    Finish preview: a studio photograph digitally recoloured to show the rose gold finish.

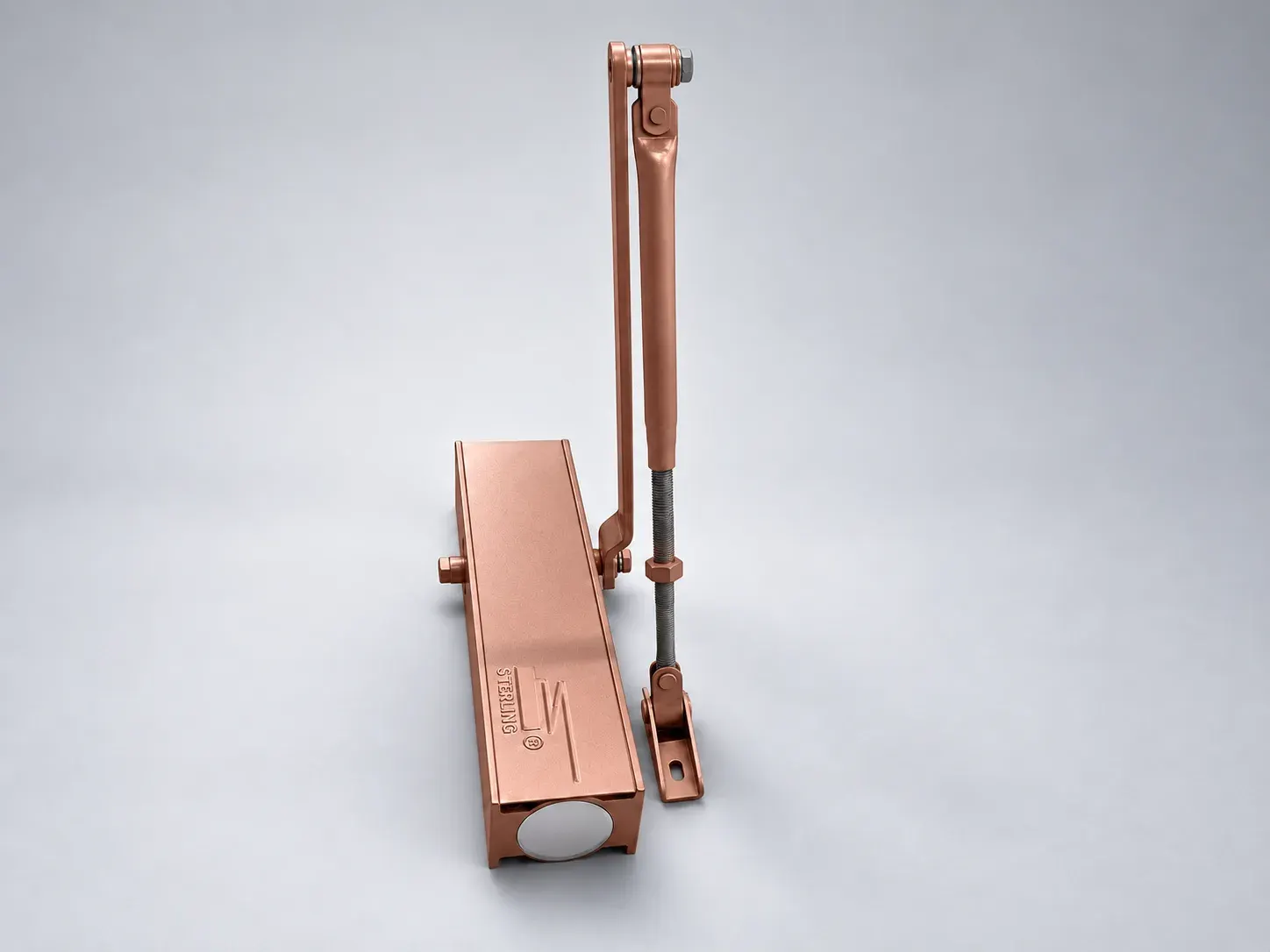

  • Sterling DC 2000 door closer with its lever arm raised, three quarter view from the end cap, digitally recoloured studio photograph showing the rose gold finish
    Finish preview: a studio photograph digitally recoloured to show the rose gold finish.

Marks, licences
and tests.

Each claim for the DC 2000 with the standard or licence behind it, and the company's quality system, facility and origin.

Certification and testing for the DC 2000
ClaimEvidenceApplies to
ISI mark, IS 3564:1995ISI marked under BIS licence CM/L 7700126309DC 2000
CE markingCE markedDC 2000
Cycle testTested to 5,00,000 cycles in a government-approved labDC 2000
Quality managementISO 9001:2015. Certified quality management system covering the company's manufacturing.MM Efficient Gadget LLP
FacilityUL-audited manufacturing facility. In-house R&D and test lab. Painting and powder coating in-house.MM Efficient Gadget LLP
OriginMade in IndiaDC 2000

Certificates and licence details

Documents

Each file states its format and size before you download it. Files not yet published on this site are sent on request.

Files for the DC 2000, with format and size
DocumentFormatSize
DC 2000 installation guidePDF on Google DrivePDFNot stated
Sterling DC 2000 datasheetPDFOn request
Sterling product brochureAll door closers and floor springsPDF9.5 MB
ISO 9001:2015Quality management system certificationPDFOn request
BIS licence: door closersISI mark to IS 3564:1995, CM/L No. 7700126309PDFOn request

Related guides

Questions about
the DC 2000.

What door weight does the Sterling DC 2000 support?

The DC 2000 is rated for doors up to 80 kg, up to 1100 mm wide and up to 2100 mm high, with an adjustable lever arm covering EN 3-4 closing force.

Is the DC 2000 suitable for heavy commercial doors?

Yes. At up to 80 kg with EN 3-4 closing force it suits heavier wooden and aluminium doors in commercial use, and the closing and latching speeds are set from the front of the closer. It measures L202 x W40 x H55 mm.

Is the DC 2000 ISI marked and cycle tested?

Yes. It is ISI marked to IS 3564:1995 under BIS licence CM/L No. 7700126309, CE marked, and tested to 5,00,000 cycles in a government-approved lab, with a rack and pinion mechanism for jerk-free operation.
