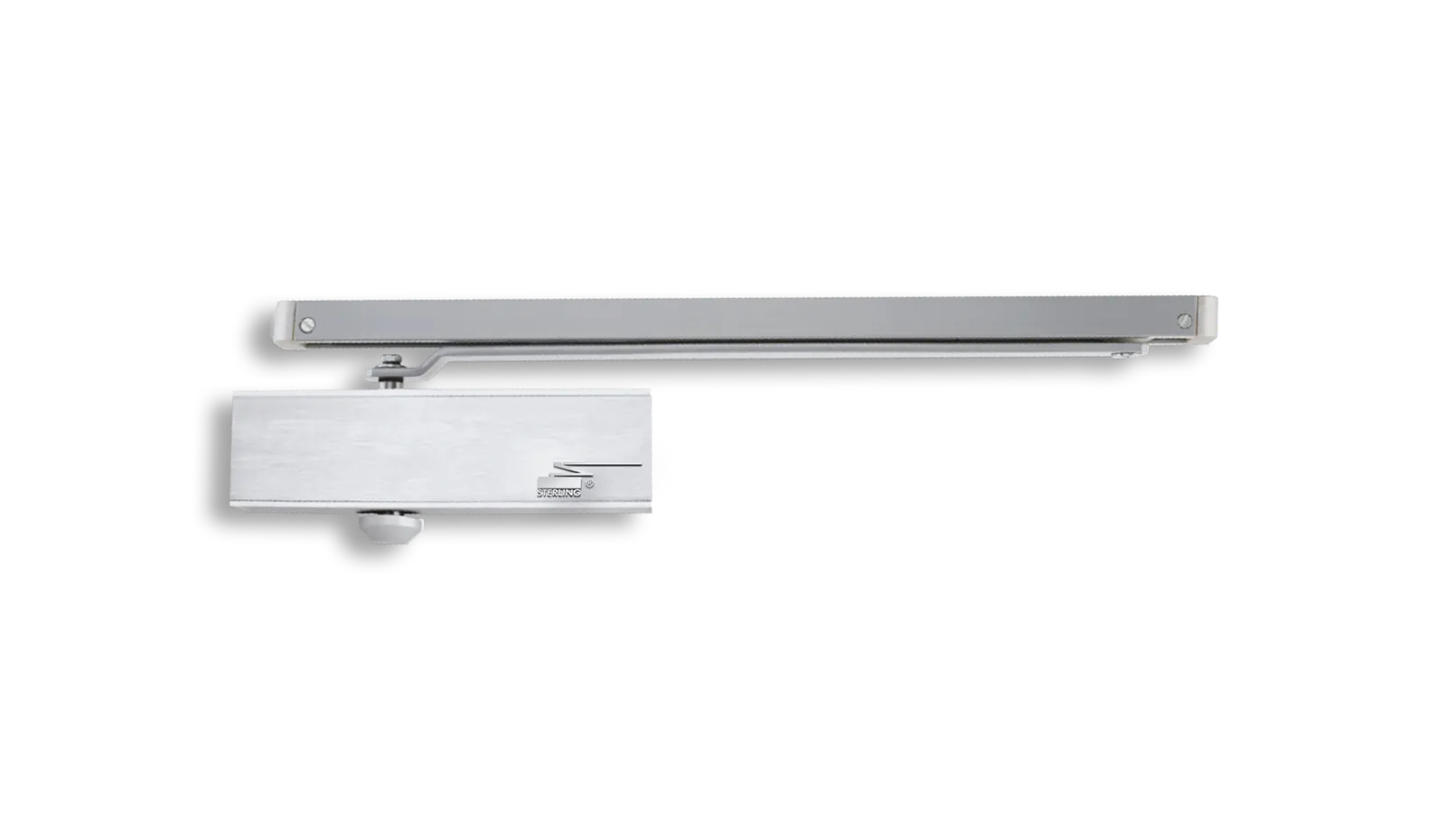

Sterling DC 2600

Surface-mounted door closer for wooden and aluminium doors. Rack and pinion, two-speed control with front adjustment, holds open from 10 to 90 degrees, universal left and right hand.

EN 1154 size: EN 3-4
Door weight, max: 80 kg
Door width, max: 1100 mm
Body L × W × H: 202 × 40 × 55 mm

Request a project quote Download specifications

Specification

Every row is a stated fact for the DC 2600. Where a fact is not stated for this model, the row says so and names the models that carry it.

Type: Surface-mounted door closer
Mounting: Surface mountedUniversal mounting for left and right hand doors without adjustment.
Mechanism: Rack and pinion
Speed control: Two-speed control for approach and latchingFront control adjustment
Door weight, max: 80 kg
Door width, max: 1100 mm
EN 1154 size: EN 3-4Closing force set by preloading the arm, across EN 3-4
Door height, max: 2100 mm
Suitable for: Wooden and aluminium doors
Body, L × W × H: 202 × 40 × 55 mm
Housing: Extruded aluminium alloy housing, precision machined and finished
Finishes: SilverBlackBrownGoldRose goldPU painted
Hold-open: From 10 to 90 degreesHold-open pelmet arm, DC-2600 HPA
Arm options: Pelmet arm, DC-2500 PAHold-open pelmet arm, DC-2600 HPA
Order codes: DC-2600 HPA - PU SRDC-2600 HPA - PU BLK
Other features: Aluminium extruded pelmet arm mounting for a compact, clean look

Dimensions
and door.

The body of the DC 2600 drawn to scale from its published dimensions, and the largest door it is rated for.

Body of the DC 2600 in millimetres: length 202, width 40, height 55, drawn from the specification. The arm is not drawn: no dimension is published for it.

Door envelope: a leaf up to 1100 mm wide and up to 80 kg, with the closer body drawn at the same scale as the leaf. Mounting is universal; the dashed body is the opposite-hand position. Leaf height is not dimensioned.

Marks, licences
and tests.

Each claim for the DC 2600 with the standard or licence behind it, and the company's quality system, facility and origin.

Certification and testing for the DC 2600
Claim	Evidence	Applies to
ISI mark, IS 3564:1995	ISI marked under BIS licence CM/L 7700126309	DC 2600
CE marking	CE marked	DC 2600
Cycle test	Tested to 5,00,000 cycles in a government-approved lab	DC 2600
Quality management	ISO 9001:2015. Certified quality management system covering the company's manufacturing.	MM Efficient Gadget LLP
Facility	UL-audited manufacturing facility. In-house R&D and test lab. Painting and powder coating in-house.	MM Efficient Gadget LLP
Origin	Made in India	DC 2600

Certificates and licence details

Documents

Each file states its format and size before you download it. Files not yet published on this site are sent on request.

Files for the DC 2600, with format and size
Document	Format	Size
DC 2600 installation guidePDF on Google Drive	PDF	Not stated
Sterling DC 2600 datasheet	PDF	On request
Sterling product brochureAll door closers and floor springs	PDF	9.5 MB
ISO 9001:2015Quality management system certification	PDF	On request
BIS licence: door closersISI mark to IS 3564:1995, CM/L No. 7700126309	PDF	On request

Related guides

How long does a door closer last?The honest answer is that it depends entirely on how often the door moves, which is why closers are rated in cycles rather than years.
Door closer problems: slamming, leaking, not latchingMost reported closer faults are one of five symptoms. Only one of them genuinely needs a new unit.

Questions about
the DC 2600.

What is the difference between the Sterling DC 2600 and DC 2000?

Both are surface-mounted closers rated up to 80 kg and 1100 mm wide with EN 3-4 closing force and the same L202 x W40 x H55 mm body. The DC 2000 has a lever arm; the DC 2600 has an extruded aluminium pelmet arm with an inbuilt hold-open that holds the door open from 10 to 90 degrees.

What door weight does the DC 2600 support?

It is rated for doors up to 80 kg, up to 1100 mm wide and up to 2100 mm high, with front control speed adjustment and two-speed control for approach and latching.

Is the DC 2600 ISI certified?

Yes. The DC 2600 is ISI marked to IS 3564:1995 under BIS licence CM/L No. 7700126309, CE marked, and tested to 5,00,000 cycles in a government-approved lab. PU painted; offered in silver, black, brown, gold and rose gold.
